Thiết bị đo áp suất CV3100

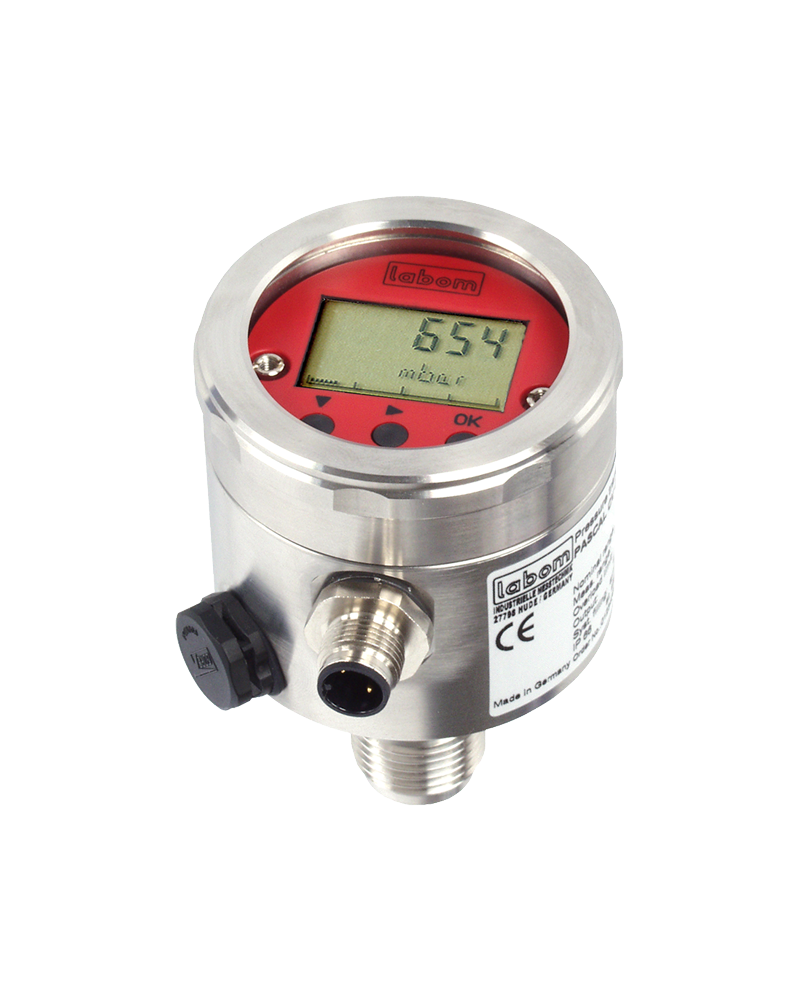

Thiết bị đo áp suất CV3100 Labom Việt Nam
Labom Việt Nam
PRESSURE TRANSMITTER PASCAL CV WITH THREADED CONNECTION – MODULAR DESIGN CV3100 Labom Việt Nam
Features
-
Modular pressure transmitter with internal or flush mounted diaphragm.
-
Output signal: 4…20 mA, HART® protocol (rev. 6), option, PROFIBUS PA, option
-
Function modules: Multifunctional display with 5-segment digital display and bar graph, switching module with 2 floating channels, maximum 0.5 A switching current, electrically isolated at all sides, without additional auxiliary power
-
Function module replacement on site without recalibration “plug and measure”
-
Limits of measuring range 0…80 mbar to 0…400 bar
-
Further features
Options
-
Explosion protection for gases and dust
-
Certificate of measuring equipment for Russian Federation
-
Material certificate as per EN 10204-3.1
-
Calibration certificate as per EN 10204-3.1
-
Classification per SIL2
-
Further options
TECHNICAL DATA
Measuring ranges
|
Detailed information see data sheet.
|
Constructional design / case
|
Design:
|
Two-chamber case design with screw
cap. |
|
|
Minimum case volume, excellent moisture
and condensate protection |
|
Material:
|
Stainless steel mat.-no. 1.4301 (304)
|
|
Degree of protection per EN 60529:
|
IP 66
|
|
|
optional: IP 69K
|
|
Climatic
category per EN 60721 3-4: |
4K4H
|
|
Pressure compensation:
|
PTFE filter system
|
|
Window:
|
Non splintering plastic: Makrolon
|
|
El. connection:
|
Screw terminal 1 mm²
|
|
Cable gland:
|
Cable gland M16, material: PA
|
|
|
Circular connector M12
|
|
|
(Further cable glands upon request.)
|
|
Weight:
|
standard device with G1/2 without function modules approx. 0.65 kg
|
Process connection
|
Variants / material:
|
See order code
|
Material wetted parts
|
Sensor:
|
Piezoresistive
|
Thin film
|
|
Sensor diaphragm:
|
1.4404/1.4435 (316L)
|
1.4542 (630)
|
|
Socket:
|
1.4404/1.4435 (316L)
|
1.4301/1.4404 (304/316L)
|
|
Gasket:
|
EPDM-FDA listed
|
—
|
Measuring system
|
Sensor:
|
Piezoresistive
|
Thin film
|
|
Sensor filling:
|
Synthetic oil, free of silicone FD1, FDA listed
|
without
|
Accuracy
|
Limit point setting:
|
per DIN 16086
|
|
Reference conditions:
|
per EN 60770-1
|
|
Linearity errors:
|
≤ 0.15 % of span
TD 5:1 no modification |
|
Hysteresis:
|
≤ 0.05 % of nominal range
|
|
Repeatability:
|
≤ 0.05 % of nominal range
|
|
Calibration position:
|
Vertical mounting position
|
|
Influence of mounting position:
|
≤ 3,5 mbar
|
|
Long-term drift (EN 60770-1):
|
≤ 0.1 % / year of nominal range
|
|
Temperature influence case:
|
Lower range value / upper range value
|
|
|
Range 0…60 °C: ± 0.15 % / 10K of nominal range
|
|
|
Range < 0 °C, > 60 °C: ± 0.2 % / 10K of nominal range
|
Output
|
General:
|
Delay time:
|
approx. 160 ms
|
|
|
Measuring cycle:
|
6 measurements / second
|
|
|
Measuring range
setting: |
Turndown 5:1
|
|
Basic module: 4…20 mA
|
Signal:
|
4…20 mA, 2-wire
|
|
|
Current range:
|
3,8…20,8 mA
|
|
|
Current limitation:
|
approx. 22 mA
|
|
|
Alarm state:
|
< 3.6 mA, optional > 21 mA
|
|
|
Damping:
|
0…120 seconds
|
|
|
Load RB:
|
RB ≤ (UV-12V DC)/0,022A [Ohm]
UV = supply voltage
|
|
Basic module: PROFIBUS PA
|
Signal:
|
digital per IEC 61158-2
|
|
|
Protocol:
|
EN 50170-PROFIBUS PA, Profile 3.0
|
|
|
Sensor address:
|
0…126 (126 = factory setting)
|
|
|
Power consumption:
|
constantly 11 mA
|
|
|
Fault current IFDE :
|
2 mA
|
|
|
Damping:
|
0…300 seconds
|
|
|
Parameterization:
|
SIMATIC PDM
|
Supply voltage
|
Basic module:
|
4…20 mA
|
PROFIBUS PA
|
|
Standard design:
|
|
|
|
Functional range:
|
12…40 V DC
|
9…32 V DC
|
|
Ex-design:
|
|
|
|
Functional range:
|
12…30 V DC
|
9…17.5 V DC
|
Temperature ranges
|
Ambient:
|
-20…85 °C
|
|
Media:
|
-20…90 °C
|
|
Storage:
|
-40…85 °C
|
Note safety values as per examination certificate!
Tests and certificates
|
See documents
|
Type series
|
CV3100, CV3101
|
