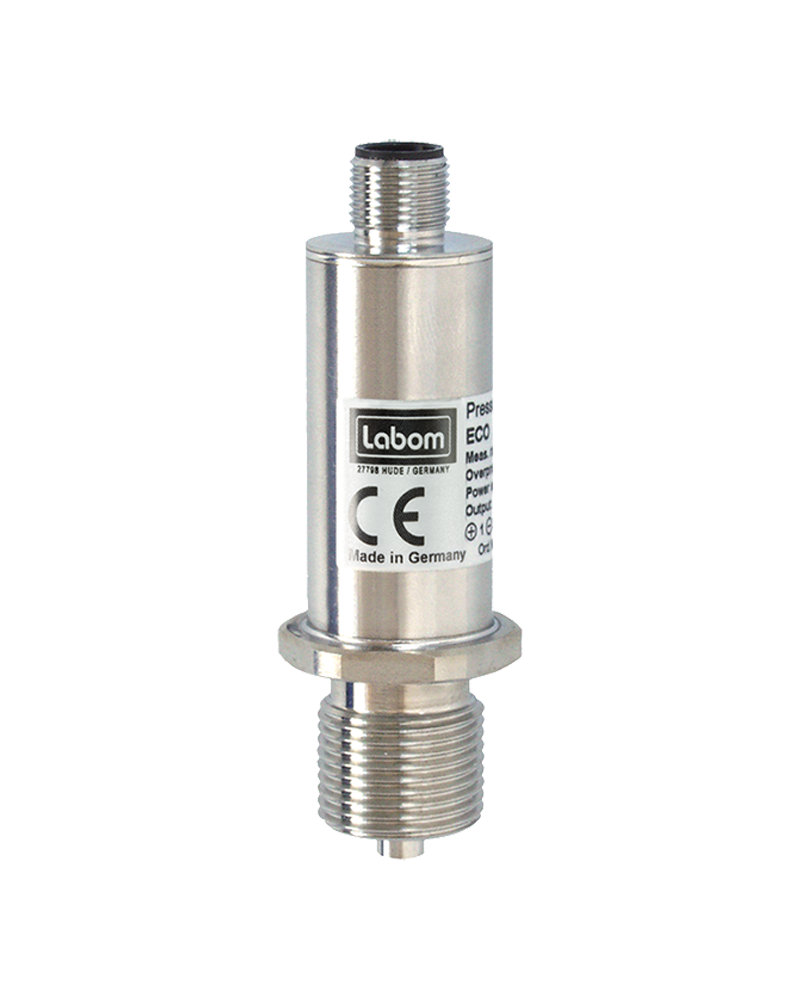

Thiết bị đo áp suất CA1100
Thiết bị đo áp suất CA1100 Labom Việt Nam
Labom Việt Nam
PRESSURE TRANSMITTER COMPACT ECONOMIC – GENERAL APPLICATIONS CA1100 Labom Việt Nam
Features
-
Digital pressure transmitter
-
Case and wetted parts of stainless steel, degree of protection IP 65
-
Measuring ranges: 0…1 bar up to 0…1000 bar; -1…0 bar up to -1…15 bar
-
Output signal 4…20 mA, 2-wire technology
-
Accuracy ≤ 0.5 %
-
Further features
Options
-
Approvals/Certificates: Certificate of measuring equipment for Russian Federation
-
Output signal (invers) 20…4 mA
-
Various process connections
-
Further electrical connections
-
Accuracy ≤ 0.3 %
TECHNICAL DATA
Constructional design / case
|
Design:
|
Compact case with outstanding protection against moisture
|
|
Material:
|
Stainless steel mat.-no. 1.4301 (304)
|
|
Degree of protection:
|
IP 65 per EN 60529
|
|
Pressure compensation:
|
Ventilation via electrical connection
|
|
Electrical connection:
|
Circular connector M12x1 (4 pin)
|
|
|
Right-angle plug per DIN EN 175 301803-A (DIN 43650 model A)
|
|
Weight:
|
Approx. 0.15 kg
|
Process connection
|
Design:
|
– G 1/4 B per DIN EN 837-1
– G 1/4 A per DIN 3852-11, model E – G 1/2 A per DIN 3852-11, model E – 1/4“ NPT per DIN EN 837-1 – 1/2“ NPT per DIN EN 837-1 – M20 x 1.5 |
Material wetted parts
|
Process connection:
|
Stainless steel mat.-no. 1.4301 (304), 1.4542 (630) at nominal range 1000 bar
|
|
Diaphragm:
|
Stainless steel mat.-no. 1.4542 (630)
|
Measuring system
|
Sensor:
|
Thin film sensor
|
Nominal range
|
For detailed information see data sheet.
|
Accuracy
|
Limit point setting:
|
per DIN 16086
|
|
Reference conditions:
|
per DIN EN 60770-1
|
|
Calibration position:
|
vertical mounting position
|
|
Accuracy (Lin./Hyst./Rep.):
|
≤ 0.5 % of nominal range
|
|
|
optional: ≤ 0.3 % of nominal range
|
|
Long term drift:
|
≤ 0.1 % / year of nominal range
|
|
Temperature influence:
|
range 0…50 °C:
≤ 0.2 % of nominal range |
|
|
range -20…0 and 50…80 °C:
≤ 0.3 % of nominal range |
Output
|
Signal:
|
4…20 mA (20…4 mA), 2-wire technology
|
|
Damping:
|
30 ms
|
|
Measuring rate:
|
250 Hz
|
|
Current range:
|
3.7…23 mA
|
|
Resolution:
|
0.004 % of nominal range
|
|
Load, RB:
|
RB ≤ (UV-10V)/0,02A [Ohm]
(UV = supply voltage)
|
Supply voltage
|
Functional range:
|
10…30 V DC
|
Temperature ranges
|
Ambient:
|
-20…85 °C
|
|
Media:
|
-20…120 °C
(at a maximal ambient temperature of 40 °C) |
|
Storage:
|
-40…80 °C
|
Extended temperature ranges upon request
Tests and certificates
|
EMC: directives 2004/108/EG
|
|
– Certificate of measuring equipment for Russian Federation
|
