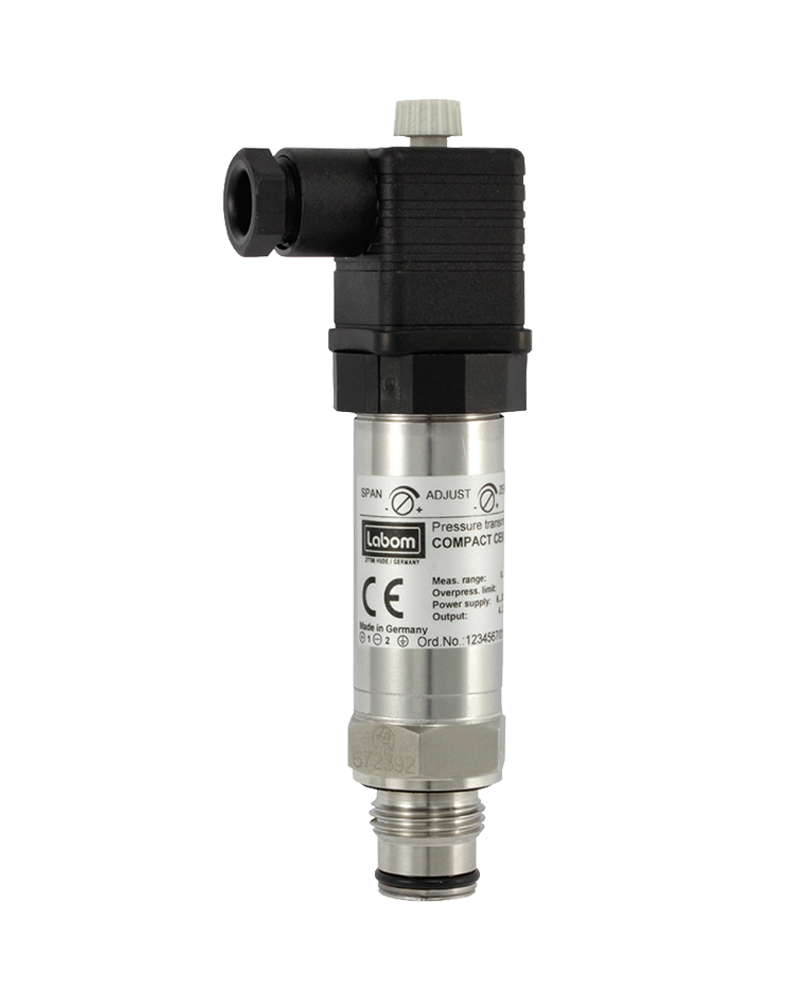

Thiết bị đo áp suất CB6010
Thiết bị đo áp suất CB6010 Labom Việt Nam
Labom Việt Nam
PRESSURE TRANSMITTER COMPACT FOR GENERAL APPLICATIONS CB6010 Labom Việt Nam
Features
-
Measuring ranges: 0…1 bar up to 0…400 bar
-
Linearity error including hysteresis < 0.2 % f.s.
-
Piezoresistive measuring system
-
Internal diaphragm (type series CB60 . .)
-
Flush mounted diaphragm (type series CE61 . .)
-
Further features
Options
-
Explosion protection for gases
-
Certificate of measuring equipment for Russian Federation
-
Classification per SIL2
-
GL-approval
TECHNICAL DATA
Constructional design / case
|
Design:
|
– Field housing IP 65 or IP 67, with cable gland
– Right-angle plug per EN 175301-803-A (DIN 43650, model A), IP 65 – Cable connection IP 67 – Circular connector M12, IP 65 |
|
Construction:
|
Electronics unit encapsulated with silicone
|
|
Material:
|
Stainless steel mat.-no. 1.4301 (304)
|
|
Pressure compensation:
|
Inner chamber aeration for measuring ranges < 16 bar over case thread or connection cable (depending on design)
|
|
Weights:
|
– Case with connector: approx. 200 g
– field housing: + approx. 260 g – with temperature decoupler: + approx. 50 g |
Output
|
Signal:
|
4…20 mA, 2-wire technology
|
|
Adjusting range:
|
approx. ± 5 % f.s., zero point and measuring span separately adjustable
|
|
Delay:
|
≤ 20 ms
|
|
Current limitation:
|
≤ 30 mA
|
|
Load, RB:
|
RB ≤ (UV-6V)/0.02A [KOhm]
UV = supply voltage
|
|
Load influence:
|
for load change 500 Ohm:
≤ 0.1 % f.s. |
Process connection
|
Design:
|
See order details
|
|
Diaphragm:
|
Stainless steel mat.-no. 1.4404 (316L)
|
|
Socket:
|
Stainless steel mat.-no. 1.4404 (316L)
|
Material wetted parts
|
Sensor :
|
Piezoresistive
|
Thin film
|
|
Sensor diaphragm:
|
1.4404/1.4435 (316L)
|
1.4542 (630)
|
|
Socket:
|
1.4404/1.4435 (316L)
|
1.4301/1.4404 (304/316L)
|
Measuring system
|
Sensor:
|
Piezoresistive
|
Thin film
|
|
Sensor filling:
|
Synthetic oil, free of silicone FD1, FDA listed
|
without
|
Accuracy
|
Lin./Hyst.:
|
< 0.2 % f.s.
< 0.3 % f.s. for mr ≥ 0…60 bar Fixed point adjustment |
|
Adjustment:
|
< ± 0.2 % f.s.
|
|
Temperature effect:
|
At 0…50 °C:
Zero point ≤ 0.2 % / 10K Span ≤ 0.2 % / 10K |
Supply voltage
|
standard design:
|
|
|
Nominal voltage:
|
24 V DC
|
|
Functional range:
|
6…30 V DC
|
|
max. allowable:
|
30 V DC
|
|
Influence:
|
≤ 0.01 % v.E. /V
|
Temperature ranges
|
Ambient:
|
-25…70 °C
|
|
Media:
|
-10…80 °C
|
|
|
with temperature decoupler (short term, for sterilization):
-10…140 °C |
|
Storage:
|
-40…90 °C
|
Further temperature ranges upon request.
Tests and certificates
|
See documents
|
EMC test
|
EMC:
|
– Noise immunity as per EN 50082, section 2, March 95 issue for industry.
– Emitted interference as per EN 50081, section 1, 1993 issue for residential and industrial areas. |
|
|
The device has no own emission.
|
Type series
|
CB6010, CB6011, CB6020, CB6021, CE6110, CE6111, CE6120, CE6121
|
