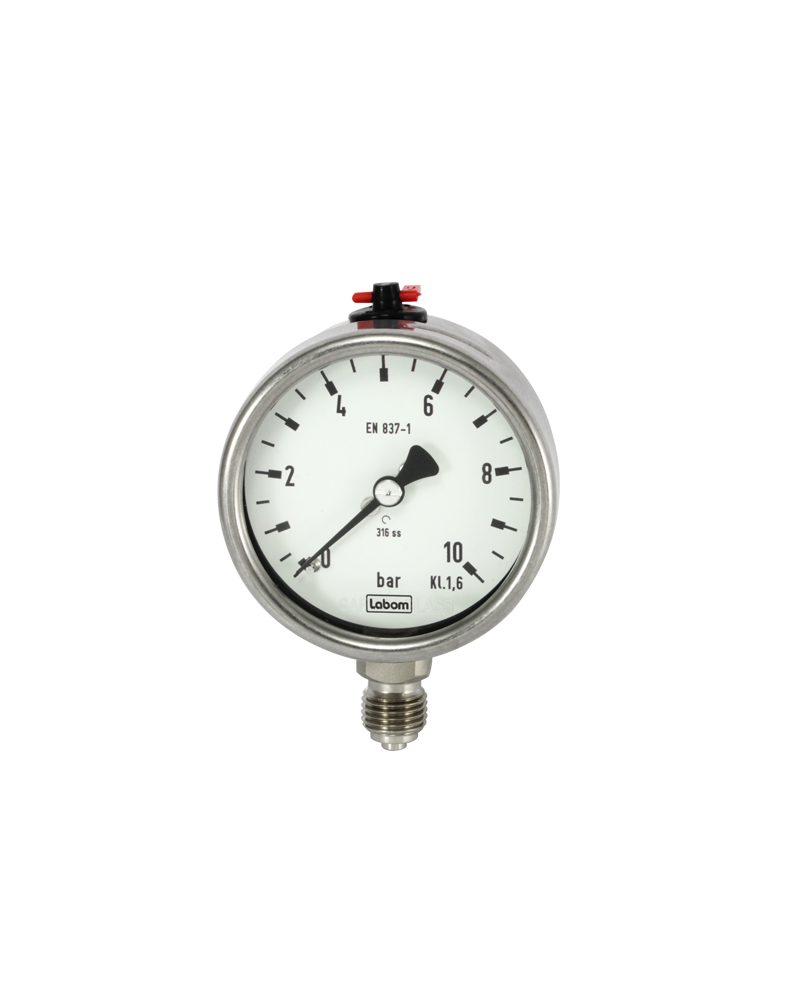

Đồng hồ đo áp suất BA4100
Đồng hồ đo áp suất dạng cơ BA4100
Đồng hồ đo áp suất BA4100 Labom Việt Nam
BOURDON TUBE PRESSURE GAUGE NS 63, STAINLESS STEEL DESIGN BA4100 Labom Việt Nam
Features
-
Bourdon tube pressure gauge
-
Nominal range -0.6…0 to -1…24 bar, 0…0.6 to 0…1000 bar
-
High quality case with bajonet ring NS 63 per EN 837-1 S1
-
Case and measuring element of stainless steel
-
Degree of protection IP 65
-
Further features
Options
-
Explosion protection (ATEX) for mechanical devices
-
Certificate of measuring equipment for Russian Federation
-
Calibration certificate as per EN 10204
-
Accuracy class 1.0 per EN 837-1
-
Case with liquid filling
-
Further options
TECHNICAL DATA
Constructional design / case
|
Version:
|
High quality case with bajonet ring per EN 837-1, material: stainless steel mat.-no. 1.4301 (304), ventilation valve, material: PUR
|
|
|
Option: Safety case with blow-out back and solid baffle wall per EN 837-1 S3,
material: stainless steel mat.-no. 1.4301 (304) |
|
Nominal size:
|
NS 63
|
|
Degree of protection per EN 60529:
|
IP 65
|
|
Case filling:
|
Option: Glycerine-water
Further filling liquids upon request. |
|
Atmosph. pressure compensation:
|
Via ventilation valve.
|
|
Case seal:
|
Material gasket: NBR
|
|
Window:
|
Non splintering laminated glass
|
|
Measuring element:
|
Bourdon tube
– c-type < 60 bar – spiral ≥ 60 bar |
|
Movement:
|
Stainless steel segment
|
|
Scale:
|
Pure aluminium, white with black inscription
Optional with red marking, special scale upon request |
|
Pointer:
|
Pure aluminium, black
|
|
Mounting:
|
Via process connection. Optional with flange for surface mounting or for flush mounting with DIN mounting flange.
|
|
Weights:
|
Without filling approx. 0.2 kg
With filling approx. 0.3 kg |
Process connection
|
Design:
|
Per DIN EN 837-1. G 1/4 B or 1/4″ NPT. Bottom or back centric connection, option: centre back connection.
|
|
|
Further process connections upon request.
|
Material wetted parts
|
Measuring element:
|
Bourdon tube and process connection: stainless steel 316ss
|
Nominal range
|
See order details, other ranges upon request
|
|
|
Overloadprotection:
|
Steady pressure max. scale value shortterm 1.3times
|
Accuracy
|
Accuracy class:
|
1.6 per EN 837-1
Optional 1.0 per EN 837-1 |
|
Temperature influence:
|
Max. ± 0.4% / 10K of measuring span per EN 837-1
|
Temperature ranges
|
|
without liquid filling
|
with liquid filling
|
|
Ambient:
|
-40…60 °C
|
-20…60 °C
|
|
Media:
|
-20…150 °C
|
-20…100 °C
|
|
Storage:
|
-20…60 °C
|
-20…60 °C
|
Extended temperature range upon request.
Tests and Certificates
|
See documents
|
