Đồng hồ đo áp suất BA5100
Đồng hồ đo áp suất dạng cơ BA5100
Đồng hồ đo áp suất BA5100 Labom Việt Nam

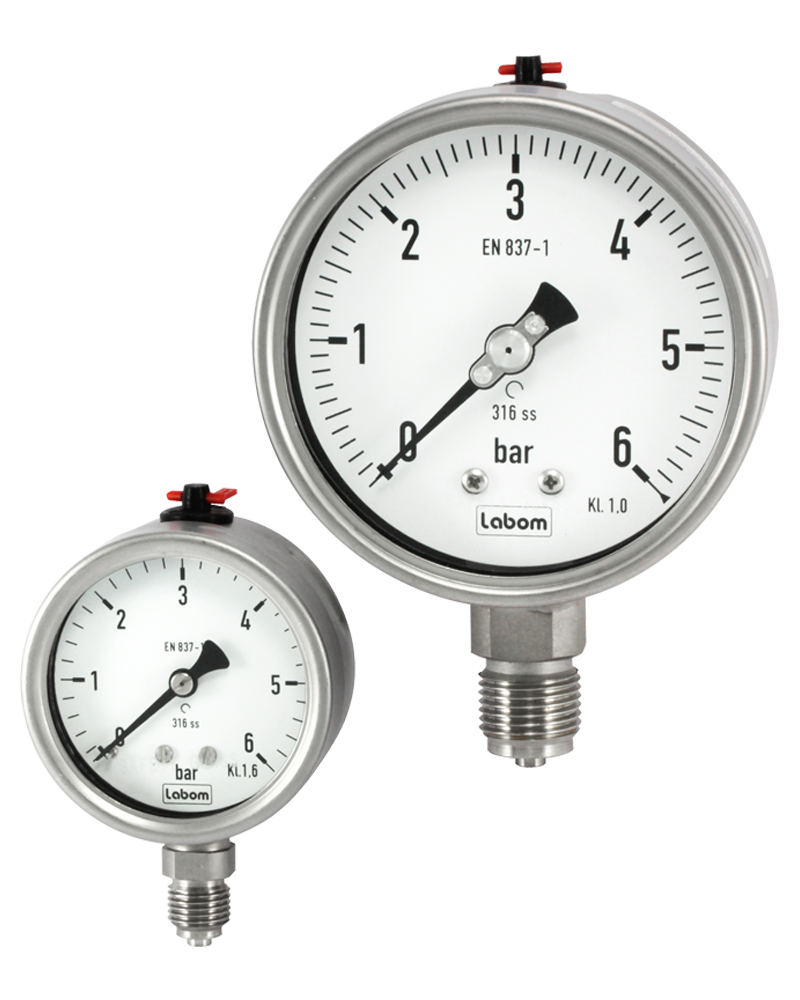

BOURDON TUBE PRESSURE GAUGE NS 63/ 100 – ECONOMIC BA5100 Labom Việt Nam
Features
-
Bourdon tube pressure gauge industrial design
-
Nominal ranges -0.6…0 to -1…15 bar, 0…0.6 to 0…160 bar
-
High quality case with bajonet ring NS 63 / NS 100 per EN 837-1
-
Case and measuring element of stainless steel
-
Degree of protection IP 65
-
Further features
Options
-
Gehäusefüllung
TECHNICAL DATA
Constructional design / case
|
Design:
|
High quality case with bajonet ring per DIN EN 837-1, material: stainless steel mat.-no. 1.4301 (304),
ventilation valve, material: PUR |
|
Nominal size:
|
NS 63 or NS 100
|
|
Degree of protection per EN 60529:
|
– without filling: IP 65
– with filling: IP 65 |
|
Case filling:
|
Glycerine-water (optional)
Further liquid fillings upon request. |
|
Window:
|
Non-splintering glass
|
|
Measuring element:
|
Bourdon tube
|
|
Movement:
|
Stainless steel segment
|
|
Scale:
|
Pure aluminium, with black inscription
Optional with red marking, special scale upon request. |
|
Pointer:
|
Pure aluminium, black, with micro adjust-ment.
|
|
Weight:
|
NS 63:
|
|
|
– without filling: approx. 0.2 kg
– with filling: approx. 0.3 kg |
|
|
NS 100:
|
|
|
– without filling: approx. 0.5 kg
– with filling: approx. 0.8 kg |
Process connection
|
Design:
|
NG 63: Per EN 837-1, G1/4 B or 1/4″ NPT, bottom or back centric connection
|
|
|
NG 100: Per EN 837-1, G1/2 B or 1/2″ NPT, bottom connection
|
Material wetted parts
|
Measuring element :
|
Bourdon tube and pressure connection stainless steel AISI 316 ss
|
Nominal range
|
See order details, other ranges upon request.
|
|
|
Overload protection:
|
At steady pressure max. scale value
|
Accuracy
|
Accuracy class:
|
per DIN EN 837-1
|
|
|
NS 63: class 1.6
NS 100: class 1.0 |
|
Temperature influence:
|
Max. ± 0.4% / 10K of measuring span per EN 837-1
|
Temperature ranges
|
|
without filling
|
with filling
|
|
Ambient:
|
-40…60 °C
|
-20…60 °C
|
|
Media:
|
-20…200 °C
|
-20…100 °C
|
|
Storage:
|
-20…60 °C
|
-20…60 °C
|
Extended temperature range upon request.
Type series
|
BA4100, BA4400, BA4110, BA4410, BA4170, BA4120, BA4420, BA4130, BA4430, BA4180
|
