Đồng hồ đo áp suất BH8100

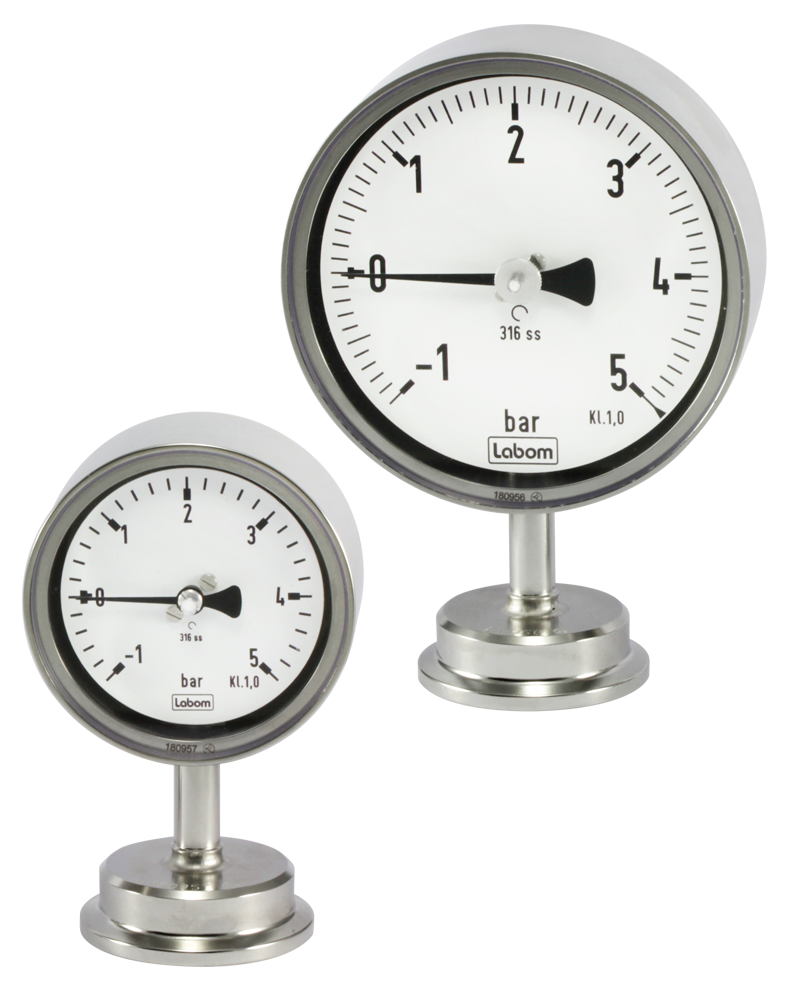

Đồng hồ đo áp suất dạng cơ BH8100
Đồng hồ đo áp suất BH8100 Labom Việt Nam
PRESSURE GAUGE NS 63/100 IN HYGIENIC DESIGN FOR FOOD/PHARMACEUTICAL/BIOTECHNOLOGY BH8100 Labom Việt Nam
Features
-
High quality case NS 63/100 in hygienic design as per EHEDG recommendation
-
Degree of protection IP 65
-
Accuracy class 1.6/1.0 per EN 837-1
-
Flush mounted diaphragm
-
Small temperature error by means of reduced-volume measuring element
Options
-
Neck tube and diaphragm seal in a one-piece design, optionally complete case including neck tube and diaphragm seal in an hygienic version available (Ra < 0.76 µm as per ASME BPE SF3 / EHEDG Doc. 8)
-
Material certificate per EN 10204
-
Calibration certificate per EN 10204
-
Damping of movement
-
Precision scale
-
Further options
TECHNICAL DATA
Constructional design / case
|
Design:
|
High quality case of stainless as per EHEDG recommendation
|
|
Material multi-piece design:
|
St.steel mat.-no. 1.4404 (316L)
|
|
Material one-piece design:
|
St.steel mat.-no. 1.4435 (316L) delta ferrite content < 3%
|
|
Nominal size:
|
NS 63 or NS 100
|
|
Degree of protection per EN 60529:
|
IP 65
|
|
Atmospheric pressure compensation:
|
Via an FDA-compliant vent valve in the window
|
|
Material case gasket:
|
EPDM, FDA-listed
|
|
Type plate:
|
Adhesive label
Optional laser marking, Ra < 2.5 µm Optionally visible inside the case. |
|
Window:
|
Macrolon
Optionally autoclavable design with window of PPSU |
|
Measuring element:
|
Bourdon tube, circular
|
|
Processconnection:
|
welded
|
|
System filling:
|
Synthetic oil, free of silicone FD1, FDA listed
|
|
Movement:
|
Material stainless steel
Option: with integrated damping system |
|
Skale:
|
Pure aluminium, white with black inscription
Option: precision scale Option: red marking, Special scale upon request |
|
Pointer:
|
Pure aluminium, black
|
Process connection
|
See order details.
|
Material wetted parts
|
Diaphragm and body:
|
Stainless steel 316L (see product group D5)
Optionally: Stainless steel mat.-no. 1.4435 (316L) Delta ferrite content < 3 % |
Nominal range
|
See order details,
|
further ranges upon request.
|
|
Overloadprotection:
|
1.3 times
Option: 2 times |
Accuracy
|
Accuracy class:
|
per EN 837-1:
NS 63: class 1.6 NS 100: class 1.0 |
|
|
Option:
NS 63: class 1.0 |
|
Temperatureinfluence:
|
Max. ± 0.4% / 10K of measuring span per EN 837-1
|
|
Processtemperaturerinfluence:
|
depending on active diaphragm diameter
|
|
|
dM 22,6…24 mm ≤ 25 mbar / 10 K
dM 27…30 mm ≤ 20 mbar / 10 K dM 34…36 mm ≤ 8 mbar / 10 K dM 40…46 mm ≤ 5 mbar / 10 K dM 51…58 mm ≤ 2 mbar / 10 K |
|
|
A detailed calculation of accuracy can be submitted upon request.
|
Hygienic design
|
The wetted surfaces made of stainless steel are executed according to EHEDG Doc.8 and ASME BPE SF3
|
|
We guarantee the following surface roughness values when selecting the hygienic design:
|
|
Diaphragm foil: Ra ≤ 0.38 µm
Laser welds: Ra ≤ 0.76 µm Turned parts: Ra ≤ 0.76 µm |
|
Optionally in the one-piece design all surfaces, not only the wetted parts, are available in the roughness Ra ≤ 0,76 µm.
|
Temperature ranges
|
Ambient:
|
-10…50 °C
|
|
Media:
|
-10…140 °C
|
|
Storage:
|
-20…60 °C
|
Option autoclave temperature: 121 °C for 30 minutes.
Tests and certificates
|
See documents
|
Type series
|
BH8100, BH8200
|
