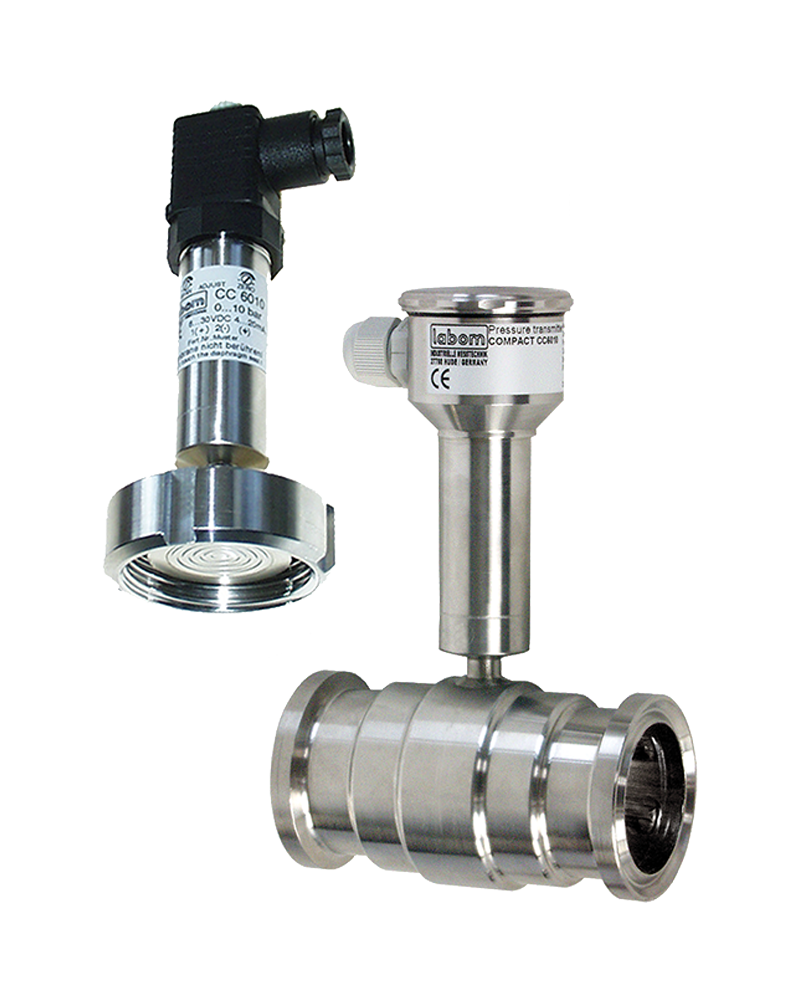

Thiết bị đo áp suất CC6010-F
Thiết bị đo áp suất CC6010-F Labom Việt Nam
Labom Việt Nam
PRESSURE TRANSMITTER COMPACT – FOOD/ PHARMACEUTICAL / BIOTECH CC6010-F Labom Việt Nam
Features
-
Measuring ranges 0…250 mbar up to 0…100 bar
-
Linearity error including hysteresis <+ 0.2 % f.s.
-
Piezoresistive measuring system
-
Hygienic design according to EHEDG, FDA und GMP recommendations
-
Material and surface quality according to the hygienic requirements
-
Further features
Options
-
Explosion protection for gases
-
Classification per SIL2
-
Inspection certificate material certificat as per DIN EN 10204-3.1
TECHNICAL DATA
Constructional design / case
|
Case design:
|
– fiel housing IP 65 or IP 67, with cable gland
|
|
|
– right-angle plug per EN 175301-803-A (DIN 43650 Form A), IP 65
|
|
|
– cable connection, IP 67
|
|
|
– circular connector M12, IP 65
|
|
|
case material stainless steel union nut: polyamide (with plug connector or cable connection for electr. connection)electronics encapsulated with silicone.
|
|
|
Inner chamber aeration for measuring ranges < 16 bar over case thread or connection cable (depending on design)
|
|
Process connection:
|
see next page or order code for variantsmaterial-Nr.: 1.4404 (316L) for the sleeves
|
|
Temperature ranges:
|
ambient temperature range: -25…+70 °C
storage temperature range: -10…+90 °C process temperature: see order details |
|
Measuring ranges/overrange limits:
|
see order details
intermediate measuring ranges upon request |
|
Response time:
|
≤ 20 ms
|
|
Measuring accuracy:
|
see data sheet
|
|
Auxiliary energy supply:
|
standard design:·
– nominal voltage 24 V DC – function range 6…30 V DC – max allowable operating voltage 30 V DC |
|
Supply voltage influence:
|
≤ 0,01 % v.E./V
|
|
Output signal:
|
4…20 mA, 2-wire technology
0…20 mA, 3-wire technology 4…20 mA, 3-wire technology 0…10 V, 3-wire technology |
|
Current limitation in output signal:
|
max. output current approx. 30 mA
|
|
Adjusting range:
|
approx. ± 5 % f.s., zero point and measuring span separately adjustable
|
|
Burden:
|
standard design Ra= UB-6V / 20 mA (KOhm)
UB= operating voltage Ra= max. permissible burden resistance (incl. lead) |
|
Burden influenc:
|
for 500 ohm burden change: ≤ 0,1 % v.E.
|
|
Functional safety:
|
EN 61508, classificatio per SIL2, TÜV-Reg.-No.44 799 13190204
|
|
Weights (without diaphragm seal):
|
– field housing: ca. 460 g
– case with connector: ca. 200 g |
|
Installation position:
|
any
|
|
EMC test:
|
– noise immunity according to EN 50082 section 2, version March 1995 issue for industry
– emitted interference according to EN 50081 section 1, 1993 issue for residential and industrial areas |
Device emits no radiation of its own
Tests and certificates
|
See documents
|
Type series
|
CC6010-F, CC6011-F, CC6020-F, CC6021-F
|
