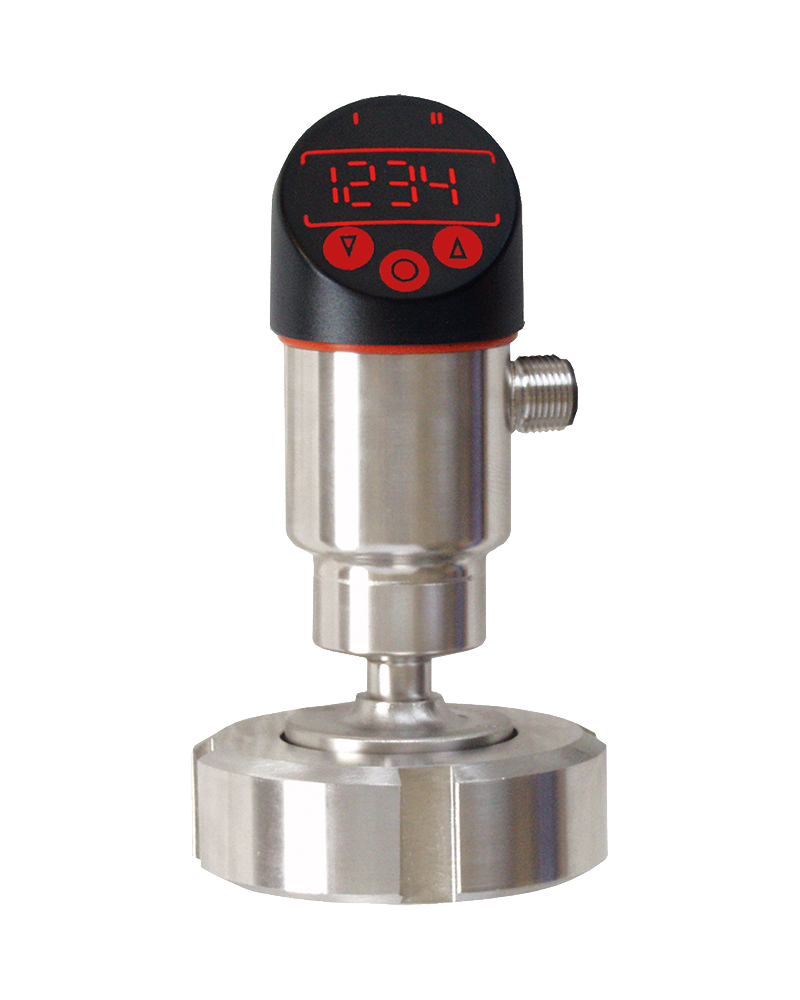

PRESSURE TRANSMITTER/ SWITCH PASCAL CS – FOOD/ PHARMA/ BIOTECHNOLOGY CS2110 Labom Việt Nam
Features
-
Multifunctional pressure transmitter/pressure switch
-
Hygienic case with no notches or indentations
-
Degree of protection IP 65
-
4 digit LED display, can be mirror-imaged by 180°
-
Indication module rotatable by 300°
-
Further features
Options
-
Certificate of measuring equipment for Russian Federation
-
Material certificate as per EN 10204-3.1
-
Calibration certificate as per EN 10204-3.1
-
Roughness height rating with inspection certificate acc. to DIN EN 10204-3.1
-
2 floating contacts
-
Further options
TECHNICAL DATA
Constructional design / case
|
Design:
|
Hygienic case design, including gasket forseamless design
Fully encapsulated electronics unit |
|
Material:
|
Stainless steel mat.-no. 1.4301 (304)
Indication module: macrolon |
|
Degree of protection:
|
– IP 65 per EN 60529
– Optional IP 67 per EN 60529 |
|
Pressure compensation:
|
Aeration via sintered filter
|
|
Electrical connection:
|
– circular connector M12, 4 pin
– circular connector M12, 8 pin (necessary for devices with switching contacts) |
|
|
Incl. sealing ring to ensure case is completely sealed
|
|
Climatic category:
|
DIN EN 60721 3-4, 4K4H
|
Process connection
|
Design:
|
See order details
|
Hygienic design
|
The wetted surfaces made of stainless steel are executed according to EHEDG Doc.8 and ASME BPE SF3 (Code: HY).
|
|
We guarantee the following surface roughness values:
|
|
Diaphragm foil: Ra ≤ 0.38 µm
Laser welds: Ra ≤ 0.76 µm Turned parts: Ra ≤ 0.76 µm |
|
Further versions of hygienic design upon request.
|
Measuring system
|
Sensor:
|
Piezoresistive measuring element
|
|
System filling:
|
Synthetic oil, free of silicon FD1, FDA listed, class USDA-H1
|
Measuring ranges / overload limits
|
Measuring range / overload limit:
|
See order details
|
|
Vakuum tightness:
|
Long term vacuum measurements at relative measurement ranges can alter the device characteristics.
(piezoresistive measuring system, only) |
Zero settings
|
Zero point:
|
Easy zero setting max. ± 20 %.
|
Accuracy
|
Limit point setting:
|
per DIN 16086
|
|
Accuracy (Lin./Hyst./Repr.):
|
0.2 % v. of mr (mr ≥ 250 mbar)
0.5 mbar (mr < 250 mbar) |
|
Long-term drift:
|
≤ 0.1 % / year per EN 61298-1
|
|
Temperature influence:
|
Range: 0…50 °C:
≤ 0.25 % of mr (mr ≥ 400 mbar) ≤ 0.4 % of mr (mr < 400 mbar) ≤ 0.5 % of mr (mr < 160 mbar) |
|
|
Range: -20…0 and 50…85 °C:
≤ 0.4 % of mr (mr ≥ 400 mbar) ≤ 0.6 % of mr (mr < 400 mbar) ≤ 0.8 % of mr (mr < 160 mbar) |
|
|
(mr = measuring range)
|
|
|
Process connection:
(zero error) DN 25/1“: 4.8 mbar/10K, DN 32/1 1/2“: 2.3 mbar/10K, DN 40: 1.6 mbar/10K, DN 50/2“: 0.6 mbar/10K |
Indication
|
Type:
|
4 digit, red LED with 7 segments
|
|
Digit high:
|
8.5 mm
|
|
Resolution:
|
-9999…9999 digit
|
|
Accuracy:
|
± 0,2 % ± 1 digit
|
|
Temperatureinfluence:
|
± 0,1 %/10K
|
|
Alignment:
|
Can be rotated through 300°,
Can be mirror-imaged by 180° when installed upside down |
|
Indication:
|
Visual confirmation for operator when a button is pressed
|
|
Decimal point:
|
Automatic setting depending on measuring range/unit, max. 3 decimal places
Or manual setting 0…3 decimal places |
|
Measuring unit:
|
bar, mbar, PSI, kPa, MPa, %, mA
|
Indication automatically changing from measurement value to measurement unit or indication of unit or value per keystroke.
Output
|
Signal:
|
4…20 mA , 2-wire technology
|
|
Sampling rate:
|
10 measurements / second
|
|
Current range:
|
3.8…20.8 mA
|
|
Resolution:
|
2 μA
|
|
Current limitation:
|
≤ 22 mA
|
|
Alarm state:
|
< 3.6 mA
|
|
Load, RB:
|
RB ≤ (UV-14V)/0.022A [Ohm]
(UV = supply voltage)
|
Switching output (option)
|
Type:
|
2 floating contacts with common ground (low side NPN) or common power supply (high side PNP)
|
|
Switching capacity:
|
200 mA, short-circuit-proof
Optional 1 A |
|
Switching status:
|
breakers or makers, programmable, device off circuit: open contact
|
|
Switching function:
|
window / hysteresis, programmable
|
|
Setting range:
|
within range limits
|
|
Hysteresis:
|
within range limits
|
|
Switching delay:
|
0,0…999.9s
|
|
Repeat accuracy:
|
0.2 % of full-scale value
|
|
Temperature influence:
|
± 0.1 % / 10K
|
|
Galvanic isolation:
|
between transmitter and outputs
|
|
Switching cycles:
|
> 10 millions
|
|
Voltage drop:
|
< 1 V (< 1.5 V, if current is > 100 mA)
|
|
Output state indicator:
|
red LED per switching output
|
|
Paramerterisation:
|
3-key parameterisation
|
Supply voltage
|
Functional range:
|
14…30 V DC
|
Temperature ranges
|
Ambient:
|
-20…85 °C
|
|
Medium:
|
-20…125° C, short term 140 °C, optional up to 160 °C for 1 h.
Higher process temperatures upon request |
|
Storage:
|
-40…85 °C
|
Tests and certificates
|
See documents
|
Mounting information
|
Mounting position:
|
At choice
|
|
Calibration position:
|
Vertical
|
Type series
|
CS2110
|
