Thiết bị đo áp suất CV4100

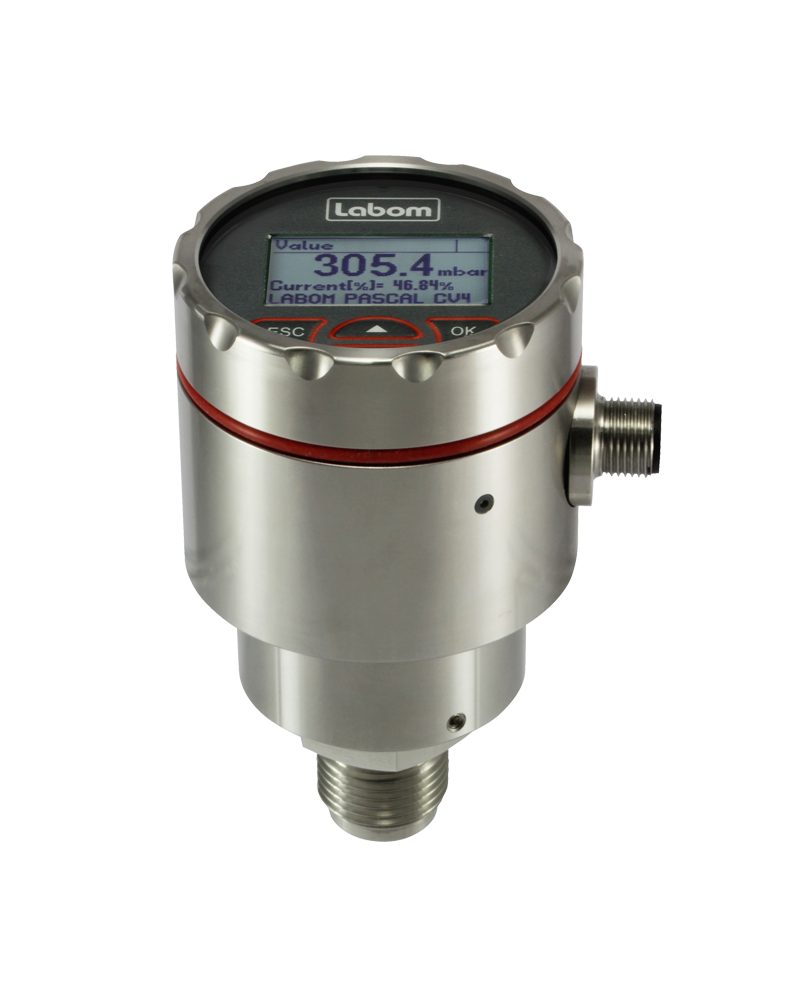

Thiết bị đo áp suất CV4100 Labom Việt Nam
PRESSURE TRANSMITTER PASCAL CV4 WITH THREADED CONNECTION CV4100 Labom Việt Nam
Features
-
Compact case of stainless steel in hygienic design according to recommendations from EHEDG and 3A, degree of protection IP 65/67
-
Accuracy ≤ 0.15 %
-
High-resolution graphic display with Intuitive operation and backlight
-
Quick access to device data
-
Comprehensive parameterising, simulation and diagnostic functions
-
Further features
Options
-
Accuracy ≤ 0.1 %
-
Explosion protection for gases and dust (in preparation)
-
Classification per SIL2 (in preparation)
-
Material certificate per EN 10204
-
Calibration certificate per EN 102044
-
Further options
TECHNICAL DATA
Measuring ranges
|
See data sheet
|
Constructional design / case
|
Design:
|
Hygienic case of stainless steel, continuously rotatable by ± 170°
|
|
Material case:
|
Stainless steel mat.no. 1.4305 (303)
Option: Stainless steel mat.no. 1.4404 (316L) |
|
Material front cover:
|
Stainless steel mat.no. 1.4305 (303)
Option: Stainless steel mat.no. 1.4404 (316L) |
|
Gaskets:
|
Silicone / NBR
|
|
Degree of protection per EN 60529:
|
IP 65 / IP 67
Option: IP 69K |
|
Climatic category per EN 60721 3-4:
|
4K4H
|
|
Vibration resistance per EN 61298-3:
|
10…60 Hz: ± 0.35 mm
60…1000 Hz: 5 g |
|
Material window:
|
Macrolon hardened
Option: Non-splintering glass |
|
Electrical connection:
|
Circular connector M12
|
|
|
Option: Cable glands
– M16x1.5, PA black – M16 x 1,5 brass nickel-plated – M16x1.5, stainless steel – M20x1.5, PA black – M20 x 1,5 brass nickel-plated – M20x1.5, stainless steel – 1/2″ NPT, PA black |
|
|
Further connections upon request
|
|
Terminal blocks:
|
Spring clamp terminals up to 2 mm2
|
|
Type plate:
|
Adhesive label Option: Laser marking
|
Process connection
|
Position:
|
– Back
|
|
Design:
|
– G1/2 B per EN 837-1
– G1/4 B per EN 837-1 – G1/4 A per DIN EN ISO 1179-2 (DIN 3852-11 model E) – 1/2″ NPT – 1/4″ NPT |
|
|
Further process connections upon request.
|
Material wetted parts
|
Sensor:
|
Piezoresistive
|
Thin film
|
|
Sensor diaphragm:
|
1.4404/1.4435 (316L)
|
1.4542 (630)
|
|
Socket:
|
1.4404/1.4435 (316L)
|
1.4301/1.4404 (304/316L)
|
Measuring system
|
Sensor:
|
Piezoresistive
|
Thin film
|
|
Sensor filling:
|
Synthetic oil, free of silicone FD1, FDA listed
|
Without
|
Accuracy
|
Deviation of characteristic:
|
Refer to the adjusted measuring span (Limit point method per DIN 16086)
Up to Turndown 5:1 ≤ ± 0.15 % Turndown > 5:1 ≤ ± 0.03 % x TD |
|
|
Option (not for NB 250 mbar):
Up to Turndown 5:1 ≤ ± 0.1 % Turndown > 5:1 ≤ ± 0.02 % x TD |
|
Long-term drift:
|
Refer to nominal range ≤ 0.1 %/year
|
|
Calibration position:
|
Vertical
|
|
Temperature influence process connection:
|
Refer to nominal range
|
|
|
Ambient temperature -20…80 °C:
0.15 %/10K , max. 0.4 % |
|
|
Ambient temperature -40…-20 °C:
Typical ± 0.2 %/10K |
Indication
|
Display:
|
– High-resolution graphic display with backlight
– 4-button operation – Freely configurable display modes – Continuously rotatable – Removable under voltage |
Output
|
Signal:
|
2-wire technology 4…20 mA
|
|
|
Lower limit 3.8…4 mA
|
|
|
Upper limit 20…21 mA
|
|
|
Lower alarm current < 3.6 mA
|
|
|
Upper alarm current > 21 mA
|
|
|
Current limitation 22 mA
|
|
|
Digital communication:
HART®-Universal Commands (EDD and DTM in preparation) |
|
Funktion:
|
– Linear
– Invers – Table function with up to 32 support points (in preparation) |
|
Turndown:
|
Up to 20:1
|
|
Damping:
|
0…999.9 s
|
|
Measuring rate:
|
20 Hz
|
|
Resolution:
|
≤ 1 µA
|
|
Current sensing func.:
|
3,55…21,5 mA in Stufen von 0,001 mA wählbar
|
|
Load RB:
|
RB ≤ (UV-12V DC)/0,022 A [Ω]
UV = supply voltage
|
|
|
for HART communication RB ≥ 230 Ω
|
Supply voltage
|
Functional range:
|
12…30 V DC, protected against polarity reversal
|
|
Ripple:
|
< 5 %
|
Temperature ranges
|
Ambient:
|
-20…80 °C
|
|
|
Option: -40…80 °C
(Display visibility is limited at temperatures below – 30 °C) |
|
Media:
|
-20…100 °C
|
|
Storage:
|
-40…80 °C
|
Tests and certificates
|
See documents
|
Type series
|
CV4100
|
