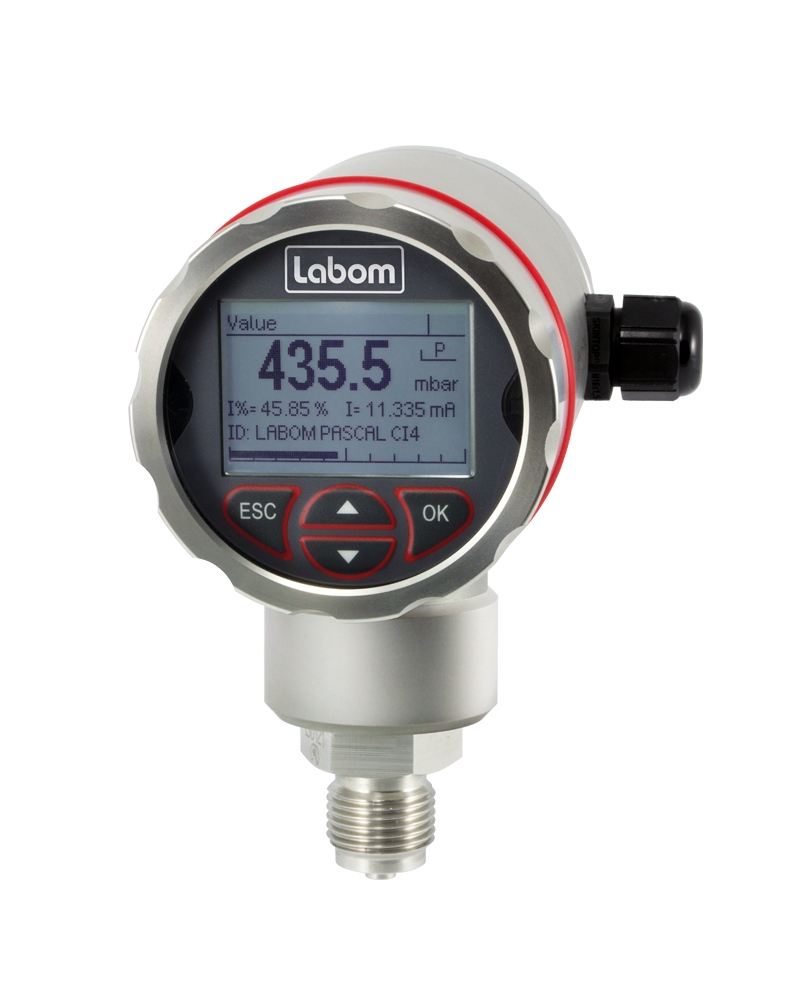

Thiết bị đo áp suất Pascal CI4100
Thiết bị đo áp suất Pascal CI4100 Labom tại Việt Nam
PRESSURE TRANSMITTER PASCAL CI4100
Labom Việt Nam
Features
-
Pressure transmitter for the measuring of relative and absolute pressures of gases, vapors and liquids
-
Stainless steel case in sturdy design, degree of protec-tion IP 65/67
-
Accuracy 0.1 %
-
High-resolution graphic display with Intuitive 4-button operation and backlight
-
Comprehensive parameterising functions
-
Further features
Options
-
Explosion protection for gases and dust
-
Classification per SIL2
-
Certificate of measuring equipment for Russian Federation
-
Material certificate per EN 10204
-
Calibration certificate per EN 10204
-
Further options
TECHNICAL DATA
Measuring ranges
|
Measuring ranges :
|
see data sheet
|
Constructional design / case
|
Design:
|
Two-chamber case, continuously rotatable by ± 170°
Case surface blasted |
|
Material case:
|
– Stainless steel mat.no. 1.4301/1.4305 (304/303)
– Stainless steel mat.no. 1.4404 (316L) |
|
Material front cover:
|
– Polypropylene, black
– Stainless steel mat.no. 1.4305 (303) – Stainless steel mat.no. 1.4404 (316L) |
|
Gaskets:
|
Silikone / NBR
|
|
Degree of protection per EN 60529:
|
– IP 65 / IP 67
– IP 69K |
|
Climatic cate-gory per EN 60721 3-4:
|
4K4H
|
|
Vibration resistance per EN 61298-3:
|
10…60 Hz: ± 0,35 mm
60…1000 Hz: 5 g |
|
Material window:
|
– Macrolon
– Non splintering glass (requires front cover of stainless steel) |
|
Elec. connec-tion:
|
– Circular connector M12
– Cable gland M16x1.5, PA black – Cable gland M16x1.5, stainless steel – Cable gland M20x1.5, PA black – Cable gland M20x1.5, stainless steel – 1/2″ NPT, PA black |
|
|
Further connections upon request
|
|
Terminal blocks:
|
– Spring clamp terminals up to 1.5 mm2
– Pole terminals up to 2.5 mm2 – Screwed terminals up to 2.5 mm2 |
|
Weight:
|
Approx. 1.4 kg
|
|
Type plate:
|
Laser marking
|
Process connection
|
Position:
|
– bottom
– back (Flush mounting upon request ) |
|
Design:
|
– G1/2 B per EN 837-1
– G1/4 B per EN 837-1 – G1/4 A per DIN 3852 Form E – 1/2″ NPT – 1/4″ NPT |
Further process connections upon request
Material messstoffberührte Teile
|
Sensor:
|
piezoressistive
|
thin film
|
|
Sensor diaphragm:
|
1.4404/1.4435 (316L)
|
1.4542 (630)
|
|
Socket:
|
1.4404/1.4435 (316L)
|
1.4301/1.4404 (304/316L)
|
Measuring system
|
Sensor:
|
piezoresistive
|
thin film
|
|
Sensor filling:
|
Synthetic oil, free of silicone FD1, FDA listed
|
without
|
Accuracy
|
Reference cond.:
|
per EN 60770-1
TU = const. (15…25) C φ = const. (45…75) % r.F. pU = const. (860…1060) mbar UB = 24 V DC (± 3 V DC) RB = 50 Ω, HART: 250 Ω Ground connected MBA = 0 bar |
|
Calibration position:
|
Process connection bottom: vertical
Process connection back: horizontal |
|
Deviation of characteristic:
|
Refer to the adjusted measuring span (Limit point method per DIN 16086)
|
|
|
Nominal range 1-400 bar, 1-16 bar abs.
Turndown 5:1; 0.1 % Turndown > 5:1; 0.02 % x TD |
|
|
Nominal range 0.25 bar
Turndown 5:1; 0.15 % Turndown > 5:1; 0.03 % x TD |
|
Long-term drift:
|
Refer to nominal range ≤ 0,1 %/Jahr
|
|
Operational availability:
|
< 12 s
|
|
Response time t90 at current output:
|
for 20 Hz measuring rate: typically 120 ms
for 100 Hz measuring rate: typically 50 ms |
|
Temperature influence, case:
|
Refer to nominal range
|
|
|
Ambient temperature -20…80 °C:
Nominal range 1-400 bar 0.1 %/10K , max. 0.3 % Nominal range 1-16 bar 0.1 %/10K , max. 0.3 % Nominal range 0.25 bar 0.15 %/10K, max. 0.4 % |
|
|
Ambient temperature -40…-20 °C:
Typical 0.2 %/10K |
Indication
|
Display:
|
– High-resolution graphic display with backlight
– 4-button operation – Freely configurable display modes – continuously rotatable by ± 170 (de-tent every 90°) – Optional: Remote display and control unit, can be used up to 10 m away from measuring point |
|
Configuration memory:
|
– All parameterisation data can be cop-ied from the device into the configuration memory in the display module. The data is permanently stored there, even in the event of power failure.
– The parameters can be transferred simply and quickly to other devices. |
Output
|
Signal:
|
2-wire technology 4…20 mA
Lower limit 3.8…4 mA Upper limit 20…21 mA Lower alarm current < 3.6 mA Upper alarm current > 21 mA Current limitation 22 mA Digital communication: HART ® protocol, version 7 |
|
|
Communication via:
– Siemens PDM – Pactware or compatible systems (FDT/DTM) – 375 / 475 Field Communicator |
|
Function:
|
Adjustable:
– Linear – Inverse response – By square root – Table function with up to 64 support points |
|
Turndown:
|
Max. 100:1
|
|
Damping:
|
0…999.9 s selectable in steps of 0.1 s
|
|
Measuring rate:
|
20 Hz, switchable to 100 Hz
|
|
Resolution:
|
1 µA
|
|
Current sensing func.
|
3.55…21.5 mA selectable in steps of 0.001 mA
|
|
Load RB:
|
RB ≤ (UV-12V DC)/0,022 A [Ohm]
UV = supply voltage
|
|
|
for HART communication: RB ≥ 230 Ω
|
Supply voltage
|
Functional range:
|
12…30 V DC, protected against polarity reversal
|
|
Ripple:
|
< 5 %
|
Temperature ranges
|
Ambient:
|
-40…80 °C (Display visibility is limited at temperatures below – 30 °C)
|
|
Media:
|
-40…100 °C
|
|
Storage:
|
-40…80 °C
|
Tests and certificates
|
See documents
|
Type series
|
CI4100, CI4103
|
