SEG 002 pull rope switch Kiepe Việt Nam

Đặc tính sản phẩm:

The emergency stop signal is performed with positive-making normally closed (NC) contacts in accordance with the closed circuit principle.

After the emergency stop function is triggered, the switching mechanism is locked in the shut-off position “0”. When the blue reset lever is actuated in switch position “1”, the switching con- tacts are reactivated and the conveyor belt is prepared for being turned back on again.

Resetting the pull-rope emergency stop switch must not cause the conveyor system to start up.

SEG 001 Công tắc giật dây khẩn cấp Kiepe

Order number

Thông tin sản phẩm hãng: KIEPE

Thông tin sản phẩm TTN: KIEPE VIỆT NAM

Ứng dụng sản phẩm:

Kiepe pull-rope emergency stop switches type SEG are used in accordance with the requirements of EN 620 as well as BGI 710 and in conformity with DIN EN ISO 13850 as emergency stop devices as supplementary safety measures on conveyor belt systems. The pull rope is symmetrically tensioned on both sides of the red release lever.

The devices are suitable for outdoor use and applications where the ambient temperature varies considerably.

With the pull-rope system functionally aligned, the emergency stop signal can be triggered over a distance of up to about 100 m for each switch.

SEG 002 Công tắc giật dây khẩn cấp Kiepe

Công tắc giật dây băng tải Kiepe SEG 002 Kiepe Việt Nam

Mounting

Pull-rope emergency stop switches of types SEG are each fastened to the substructure in installation position with 2 M8 screws, centered between the anchor hook 3 of the pull-rope system (see the mounting diagram).

Công tắc dừng khẩn cấp SEG Kiepe

Spare parts and accessories

Screw plug M25 x 1.5                                                                                        113.52.87.20.02

Screwed cable gland M25 x 1.5 (sealing area 11 mm to 16 mm)                                   113.52.02.20.01

Replacement lamp: BA 15D 220 V-260 V / 5 W        331.09.08.02.01

SEG 002 Kiepe Việt Nam

Belt Conveyor-Pull Rope Switch SEG 004 Kiepe Việt Nam

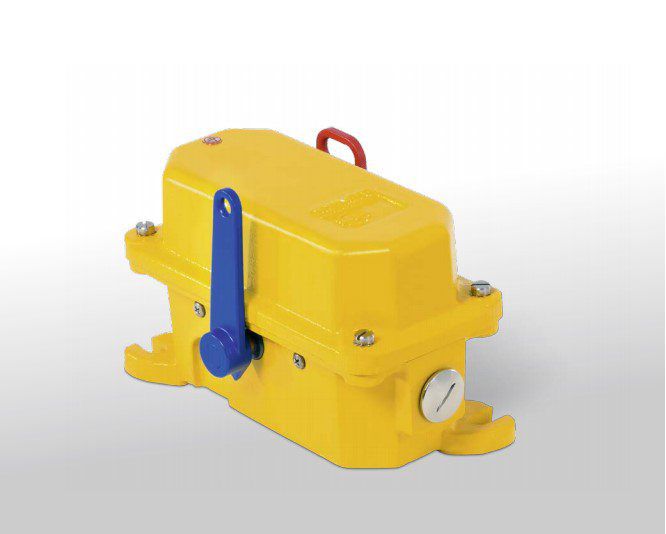

SEG 001 KIEPE | SEG 002 KIEPE ELEKTRIK VIỆT NAM
