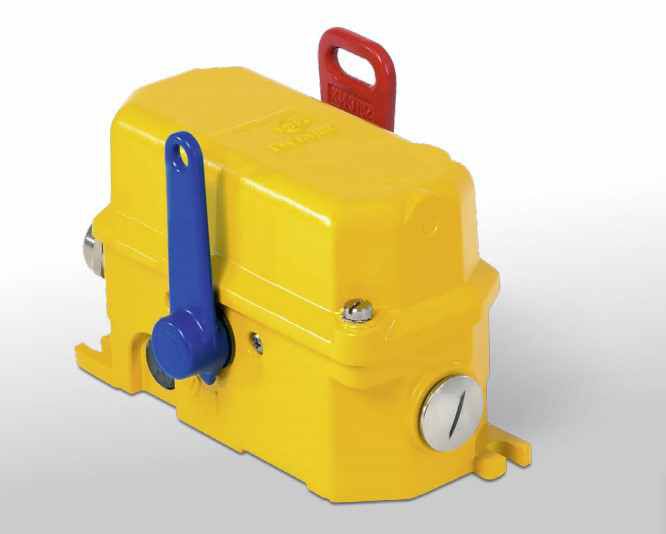

CÔNG TẮC GIẬT DÂY BĂNG TẢI KIEPE HEN 211

HEN 211 KIEPE, HEN 211 Kiepe Việt Nam, đại lý kiepe việt nam, công tắc giật dây kiepe, HEN 211 Kiepe, công tắc giật dây băng tải Kiepe, kiepe việt nam

0877.105.430

cong@ttnvietnam.vn

Liên hệ

Chi tiết sản phẩm

Pull Rope Emergency Stop Switch Kiepe

HEN 211 Kiepe Việt Nam

Thông tin sản phẩm hãng: KIEPE

Thông tin sản phẩm TTN: KIEPE VIỆT NAM

enlightened Ứng dụng sản phẩm

Kiepe pull-rope emergency stop switch types HEN 211 comply with

Machinery Directive 2006/42/EC and meet the requirements in the safety objectives of Low Voltage Directive 2006/95/EC.

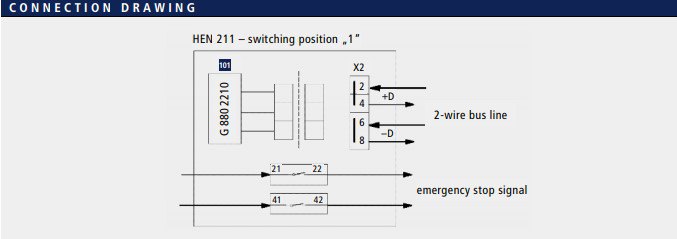

The HEN 211 aluminum housing is equipped with two NC-and one NO-Contact. The NO-Contact is connected to a bus modul, which watches and signalizes the switching status (in/off) economically over long distances.

The pull-rope emergency stop switch is actuated by a pull rope 1 connected on both sides of the red release lever. The contacts are actuated by a spring supported cam disc (snap action function). At the same time, two NC contacts and one NO contact are actuated simultanously.

The emergency stop signal is performed with positive-making normally closed (NC) contacts in accordance with the closed circuit principle. The NO-contact activates the bus modul 101.

Spare parts and accessories:
Screwed cable gland M25 x 1.5 (sealing area 11 mm to 16 mm)	113.52.02.20.01
Dummy screw M25 x 1.5	113.52.87.20.02
Cover including seal and screws	93.066 839.004
Programming adaptor (cable with 3-pole connector)	94.065 083.003

Bảng so sánh giữa Công tắc giật dây hãng Kiepe và hãng Sitec

KIEPE Việt Nam		SITEC Việt Nam
Name	Part number	Model code	Part number
HEN 001Kiepe việt nam	91.043 450.001	SNA2-11S	10094
HEN 002Công tắc giật dây băng tải Kiepe	91.043 450.002	SNA2-22S Công tắc giật dây Sitec	10100
HEN 003 Công tắc giật dây Kiepe	91.043 450.003	SNA2-33S Sitec Việt Nam	10096
HEN 004 nhà phân phối Kiepe Việt Nam	91.043 450.004	SNA2-11S-L1 Công tắc giật dây băng tải Sitec
HEN 005	91.043 450.005	SNA2-22S-L1
HEN 006	91.043 450.006	SNA2-23S-L1
HEN 017	91.043 450.017	SNA2-11S-V1
HEN 018	91.043 450.018	SNA2-22S-V1	10233
HEN 023	91.043 450.023	SNA2-11G
HEN 024	91.043 450.024	SNA2-22G
HEN 211	91.043 450.211	coming soon	–
HEN 221	91.043 450.221	coming soon	–
HEN 231	91.043 450.231	coming soon	–
