Chi tiết sản phẩm
Misalignment Switch VG Kiepe Việt Nam
♦ Kiepe Belt Misalignment Switches are used in conveyor instal- lations for monitoring the true running of conveyor belts. The switches, when mounted at the running edges of a conveyor belt, will be operated if the belt deviates from it’s designed running line by more than a permissable distance.
Order code sản phẩm:
|
VG 03 /5 Đại lý Kiepe |
92.038 143.501 |
0,75 |
|
VG 033 /5 Kiepe Việt Nam |
92.038 143.511 |
0,75 |
|
VG 03 /6 Công tắc lệch băng Kiepe |
92.038 143.601 |
0,75 |
|
VG 033 /6 Kiepe |
92.038 143.611 |
0,75 |
|
VG 133 /6 nhà phân phối Kiepe |
92.038 143.615 |
0,75 |
Công tắc canh biên báo lệch băng tải Kiepe VG 03/5
VG 03/6 Kiepe Việt Nam
♦ Mô tả sản phẩm:

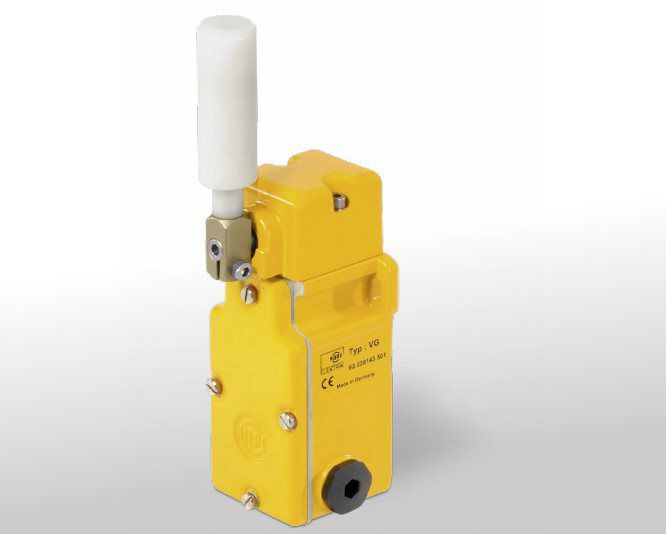

The switch enclosure consists of corrosion-resistant aluminium alloy. All external parts are either of stainless steel or have been especially plated. The actuating roller is of polyamide. All VG- types ars fitted with snap acting switches. The actuating head is removable from the main switch body and may be re-fitted in any of four positions. This, together with re-positioning of the switch trip bar allows the actuating roller to operate in any of four di- rections giving greater mounting versatility. All this will insure extremely safe operation, permitting to use the switch for severe operation and in outdoor installations.
Spares and Options
Actuating roller for type VG Æ 25 mm 94.037 860.001
Switch element for type VG 215.15.14.10.00
Ventilation duct 580.00.16.01.01
Kiepe-Elektrik
Kiepe-TTN
Công tắc chống lệch băng tải Kiepe VG 03/6
VG 033/5 Công tắc báo lệch Kiepe
