Chi tiết sản phẩm

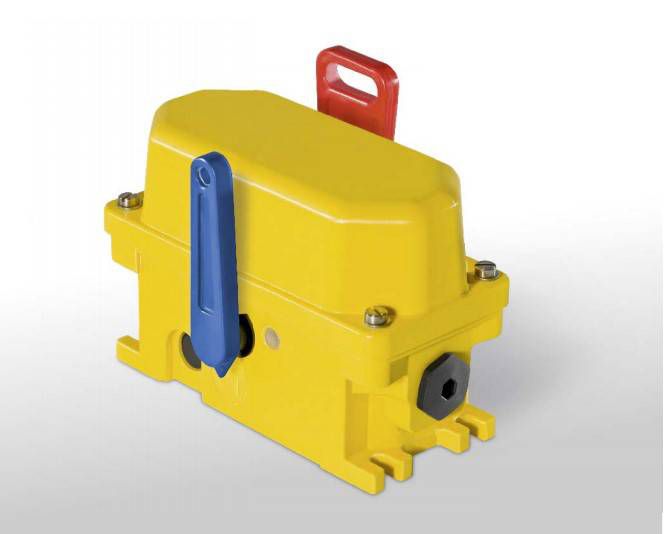

Pull Rope Emergency Stop Switch NTS 001 Kiepe

♦ Ứng dụng sản phẩm:

Kiepe pull-rope emergency stop switches type NTS are used in accordance with the requirements of EN 620 as well as BGI 710 and in conformity with DIN EN ISO 13850 as emergency stop devices as supplementary safety measures on conveyor belt systems. The pull rope is symmetrically tensioned on both sides of the red release lever.

NTS 018 Công tắc giật dây khẩn cấp Kiepe

♦ Đặc tính sản phẩm:

The pull-rope emergency stop switch is actuated by a pull rope 1 connected on both sides of the red release lever. The contacts are actuated by a spring supported cam disc (snap action function). At the same time, up to three NC and NO contacts are actuated simultaneously and a cross comparison of the contacts can be performed with an external control unit.

The emergency stop signal is performed with positive-making normally closed (NC) contacts in accordance with the closed circuit principle.

After the emergency stop function is triggered, the switching mechanism is locked in the shut-off position “0”. When the blue reset lever is actuated in switch position “1”, the switching con- tacts are reactivated and the conveyor belt is prepared for being turned back on again.

Resetting the pull-rope emergency stop switch must not cause the conveyor system to start up.

NTS 701 Kiepe Việt Nam

NTS 001	1	1	91.064 084.001
NTS 002	2	2	91.064 084.002
NTS 004	1	1	91.064 084.004
NTS 005	2	2	91.064 084.005
NTS 018	2	2	91.064 084.018
NTS 701	1	1	91.064 084.701
NTS 702	2	2	91.064 084.702
NTS 061	2 (Au)	2 (Au)	91.064 084.061

Belt Conveyor – Pull Rope Switch NTS 004 Kiepe Việt Nam

Spare parts and accessories:
Screwed cable gland PA M25 x 1.5 (sealing area 11 mm to 16 mm)	113.51.00.20.10
Screw plug PA M25 x 1.5	113.43.87.20.01
Replacement lamp: LED AC/DC 230 V / 1,3 W	338.04.01.02.01
Replacement lamp: LED AC/DC 24-28 V / 0,8 W	338.04.01.02.02
Ventilation membran M12 x 1	580.00.16.01.01
Cover NTS including seal and screws	93.067.319.001

NTS 005 Kiepe Việt Nam

Công tắc giật dây Kiepe NTS 004

NTS 023 Công tắc giật dây băng tải Kiepe

enlightened Dòng sản phẩm tương đương thay thế Kiepe ⇒ Sitec Việt Nam

Kiepe Việt Nam	Order number	Sitec Việt Nam	Order number
NTS 001 Kiepe Việt Nam	91.064 084.001	SND2-11S	10133
NTS 002 Công tắc giật dây Kiepe	91.064 084.002	SND2-22S Sitec Việt Nam	10134
NTS 003	91.064 084.003	SND2-33S pull rope emergency stop switch Sitec	10135
NTS 004 Kiepe Việt Nam	91.064 084.004	SND2-11S-L1 Công tắc giật dây Sitec
NTS 005 Công tắc giật dây băng tải Kiepe	91.064 084.005	SND2-22S-L1
NTS 023	91.064 084.023	SND2-11G Đại lý Sitec Việt Nam
NTS 024	91.064 084.024	SND2-22G
NTS 211 Đại lý Kiepe việt nam	91.064 084.211	coming soon	–
NTS 221 Nhà phân phối Kiepe Việt Nam	91.064 084.221	coming soon	–
NTS 231	91.064 084.231	coming soon	–
NTS 701	91.064 084.701	SND2-11S	10133
NTS 702	91.064 084.702	SND2-22S	10134
