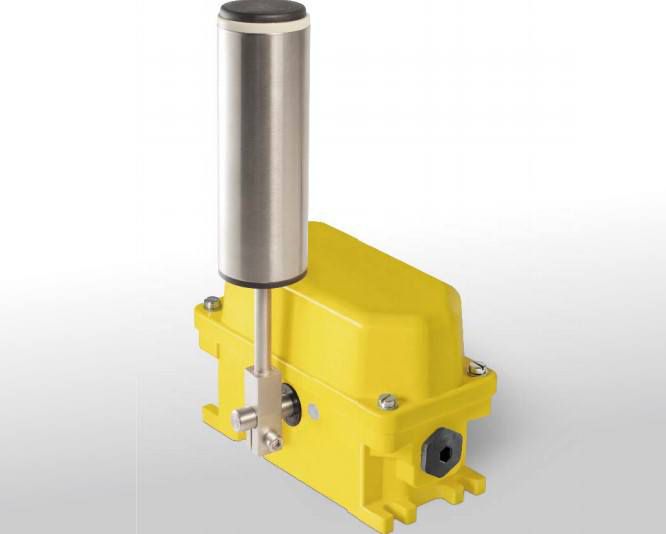

CÔNG TẮC LỆCH BĂNG KIEPE SLS 017 VIỆT NAM

SLS 011 Kiepe Việt Nam, Công tắc báo lệch băng tải Kiepe SLS 017, SLS 711 Kiepe Việt Nam, Công tắc canh biến báo lệch băng tải Kiepe, Công tắc lệch băng Kiepe SLS 711, SLS 211 Kiepe Việt Nam

0877.105.430

cong@ttnvietnam.vn

Liên hệ

Chi tiết sản phẩm

Công tắc chống lệch băng tải SLS 011 Kiepe

Ứng dụng sản phẩm:

KIEPE belt misalignment switches of type SLS are designed for heavy duty application and used at fixed belt conveyors according to DIN EN 620 requirements in order to keep the risk of uninten- tional operation as low as possible. The lateral movement of the conveyor belt is monitored and by switching off the conveyor in the case of unacceptable belt drift, the belt monitoring prevents damage and destruction of the belt and the machine.

Công tắc canh biên báo lệch băng tải SLS 211 Kiepe

Mounting:

Type SLS 1 misalignment switches are fastened in installation position on a substructure with 2 M8 screws each. In the case of misalignment, the belt 2 must not leave the lateral guide rollers. The position of the misalignment switches shall be chosen such that the belt 2 makes contact with the actuation roller of the mis- alignment switch preferably perpendicularly. The actuation roller of the misalignment switch is not touched during normal operation.

Conveyor Belt Misalignment Switch SLS 711 Kiepe Việt Nam

SLS 011 Misalignment Switch Kiepe Việt Nam
Chuyển đổi tương đương Kiepe ⇒ Sitec Germeny

KIEPE		SITEC
Name	Part number	Model code	Part number
HES 011	92.057 020.011	PSA2-2S-S1	10097
HES 017	92.057 020.017	PSA2-2S-S1-V1
HES 211	92.057 020.211	coming soon	–
HES 501	92.057 020.501	coming soon	–
HES 711	92.057 020.711	PSA2-2S-S1	10097
SLS 011 Công tắc lệch băng Kiepe	92.064 251.011	PSD2-2S-S1 Position misalignment switches Sitec	10136
SLS 017 Đại lý Kiepe Việt Nam	92.064 251.017	PSD2-2S-S1-V1
SLS 211 Kiepe Việt Nam	92.064 251.211	coming soon	–
SLS 711 Công tắc lệch băng Kiepe	92.064 251.711	PSD2-2S-S1	10136
MRS 001	91.063 294.001	PSD2-2S-S1	10136

Kiepe Germany

Kiepe-Việt Nam

Type	Ventilation membran	Order number
SLS 011		92.064 251.011
SLS 017 misalignments switch Kiepe	x	92.064 251.017
SLS 711		92.064 251.711
Equipment options:
Spare parts and accessories:
Cable gland M25x1.5; sealing area Æ 11mm to Æ 16 mm	113.51.00.20.10
Screw plug; M25 x 1.5	113.43.87.20.01
Cover SLS	93.067 319.001
Roller lever, stainless steel, Æ 50 mm	93.055 201.101
