Chi tiết sản phẩm
PRS 102 Kiepe Việt Nam
|
N.C. |
SPDT |
N.O. |
|
||
|
PRS 001 kiepe việt nam |
2 |
1 |
– |
– |
91.063 293.001 |
|

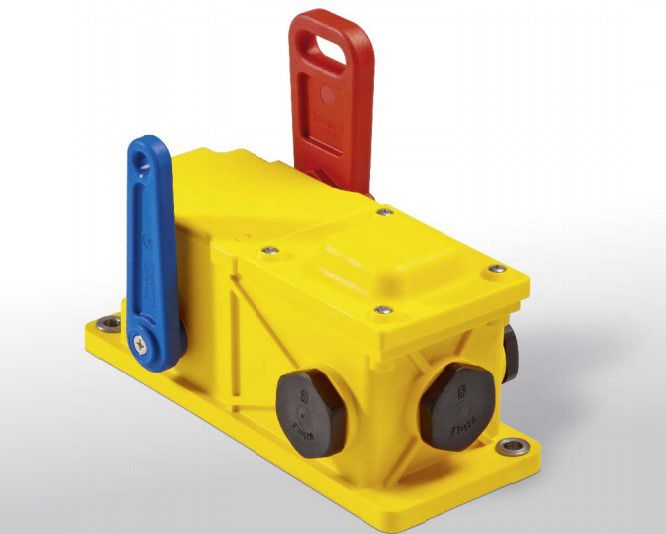

PRS 101 công tắc giật dây kiepe |
2 |
1 |
(1) |
LED 230 V AC |
91.063 293.101 |
|
PRS 102 công tắc giật dây khẩn cấpkiepe |
2 |
1 |
(1) |
LED 24 V DC |
91.063 293.102 |
Ứng dụng sản phẩm:
Kiepe pull-rope emergency stop switches type PRS are used in accordance with the requirements of EN 620 as well as BGI 710 and in conformity with DIN EN ISO 13850 as emergency stop devices as supplementary safety measures on conveyor belt systems. The pull rope is symmetrically tensioned on both sides of the red release lever
Belt Conveyor Pull Rope Switch Kiepe Việt Nam
Kiepe Việt Nam
PRS 102 Kiepe
Công tắc giật dây băng tải Kiepe PRS 102
Mounting:
Pull-rope emergency stop switches of types PRS are centered between the anchor hooks 3 of the pull-rope system and each fastened to the substructure in installation position with 2x M6 screws.
Electrical connection is performed with the device open using the screwed cable gland included in the delivery, directly on the terminal block [X10] to [X22] (see the connection drawings).
The signal lamp of DC-Variant PRS 102 can be connected without regarding the polarity of the voltage.
Pull rope switch PRS 101Kiepe Việt Nam
|
Spare parts and accessories |
|
|
Screwed cable gland M25 |
113.51.00.20.10 |
|
Dummy screw M25 |
113.43.87.20.01 |
|
Replacement lid PRS 001 |
94.059 408.001 |
|
Replacement lid PRS 101 with LED-Block 230 V AC |
93.059 431.001 |
|
Replacement lid PRS 102 with LED-Block 24 V DC |
93.059 431.002 |
Công tắc dừng băng tải Kiepe PRS 102
Kiepe Elektrik Kiepe PRS 001 Việt Nam
Kiepe Germanu
Đại lý Kiepe
