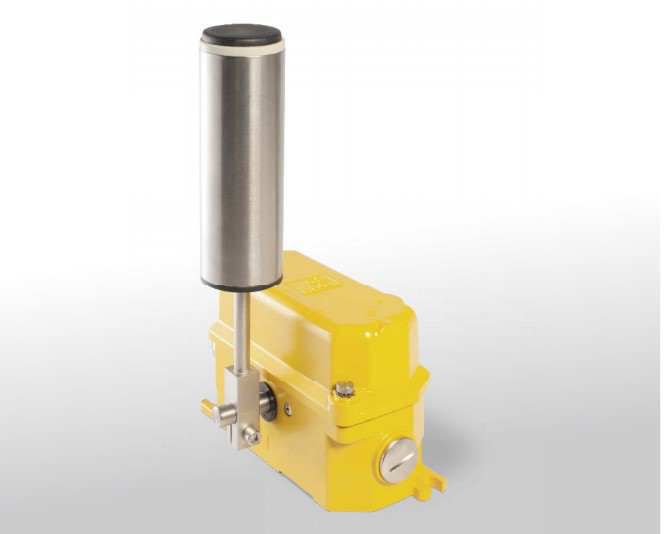

CÔNG TẮC CHỐNG LỆCH BĂNG TẢI KIEPE HES 017

HES 017 Kiepe, HES 011 Kiepe Việt Nam, HES 711 Kiepe, Công tắc báo lệch băng tải Kiepe HES 017, HES 711 Kiepe Việt Nam, Công tắc canh biến báo lệch băng tải Kiepe, Công tắc lệch băng Sitec, Sitec Việt Nam, đại lý Kiepe việt nam

0877.105.430

cong@ttnvietnam.vn

Liên hệ

Chi tiết sản phẩm

Misalignment Switch HES 011 Kiepe Việt Nam

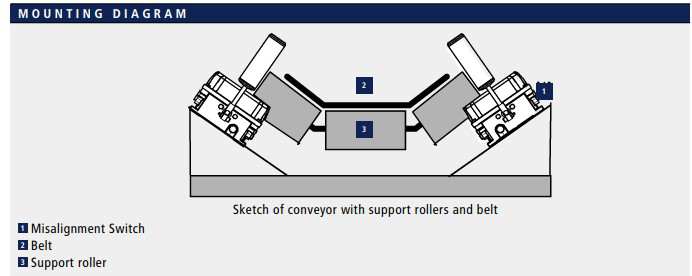

Bản vẽ Mounting Công tắc báo lệch băng Kiepe HES 711

Thông tin sản phẩm hãng: Kiepe-Elektrik

Thông tin sản phẩm tại VN: Kiepe-TTN

enlightened Ứng dụng của sản phẩm:

KIEPE belt misalignment switches of type HES are designed for heavy duty application and used at fixed belt conveyors according to DIN EN 620 requirements in order to keep the risk of uninten- tional operation as low as possible. The lateral movement of the conveyor belt is monitored and by switching off the conveyor in the case of unacceptable belt drift, the belt monitoring prevents damage and destruction of the belt and the machine.

Công tắc lệch băng HES 711 Kiepe Việt Nam

Type	Contact configuration	Extended temperature range	Ventilation membran	Order number
	SPDT	– 40 °C …+70 °C
HES 011 Kiepe Việt Nam	2			92.057 020.011
HES 017 Công tắc báo lệch băng tải Kiepe	2		x	92.057 020.017
HES 711 Công tắc lệch băng tải Kiepe	2	x		92.057 020.711
Equipment options:
Devices for two-wire bus-system
Spare parts and accessories:
Cable gland M25x1,5; sealing area Æ 11mm to Æ 16 mm			113.52.02.20.01
Screw plug; M25 x 1,5			113.52.87.20.02
Cover HES			93.066 839.004
Roller lever, stainless steel, Æ 50,5 mm			93.055 201.101

Đặc điểm sản phẩm

Inadmissible belt drift occurs when the belt edge approaches the end of the supporting rollers through lateral movement and sur- passes it. Then the actuator (roller lever) is operated and displaced. In the case of displacement of the actuator, the cam operating switches are activated.

The switching angle can be set via an adjustable camshaft. In this way, a pre-warning can be implemented in addition to the safety shutdown. As soon as the belt moves correctly , the roller lever will automatically return to its home position.

Belt Conveyor – Misalignment Switch HES 011 Kiepe Việt Nam

HES 011 Kiepe Việt Nam

Sản phẩm tương đương thay thế Kiepe ⇒ Sitec

KIEPE		SITEC
Name	Part number	Model code	Part number
HES 011	92.057 020.011	PSA2-2S-S1 Misalignment Switch	10097
HES 017 Đại lý Kiepe	92.057 020.017	PSA2-2S-S1-V1
HES 211	92.057 020.211	coming soon	–
HES 501	92.057 020.501	coming soon	–
HES 711	92.057 020.711	PSA2-2S-S1	10097
SLS 011	92.064 251.011	PSD2-2S-S1	10136
SLS 017	92.064 251.017	PSD2-2S-S1-V1
SLS 211	92.064 251.211	coming soon	–
SLS 711	92.064 251.711	PSD2-2S-S1	10136
MRS 001	91.063 294.001	PSD2-2S-S1	10136
