Misalignment Switch SEL Kiepe

Ứng dụng sản phẩm:

KIEPE belt misalignment switches of type SEL are designed for heavy duty application and used at fixed belt conveyors according to DIN EN 620 requirements in order to keep the risk of uninten- tional operation as low as possible. The lateral movement of the conveyor belt is monitored and by switching off the conveyor in the case of unacceptable belt drift, the belt monitoring prevents damage and destruction of the belt and the machine.

Conveyor Belt-Misalignment Switch SEL 001 Kiepe Việt Nam

Inadmissible belt drift occurs when the belt edge approaches the end of the supporting rollers through lateral movement and sur- passes it. Then the actuator (roller lever) is operated and displaced. In the case of displacement of the actuator, the cam operating switches are activated.

Thông tin sản phẩm hãng: KIEPE

Thông tin sản phẩm TTN: KIEPE VIỆT NAM

The switching angle can be set via an adjustable camshaft. In this way, a pre-warning can be implemented in addition to the safety shutdown. As soon as the belt moves correctly , the roller lever will automatically return to its home position.

Công tắc báo lệch băng tải Kiepe SEL 001

Đại lý Kiepe Việt Nam

Mounting

Type SEL 1 misalignment switches are fastened in installation position on a substructure with 2 M10 screws each. In the case of misalignment, the belt 2 must not leave the lateral guide rollers. The position of the misalignment switches shall be chosen such that the belt 2 makes contact with the actuation roller of the mis- alignment switch preferably perpendicularly. The actuation roller of the misalignment switch is not touched during normal operation.

Công tắc báo lệch băng tải Kiepe

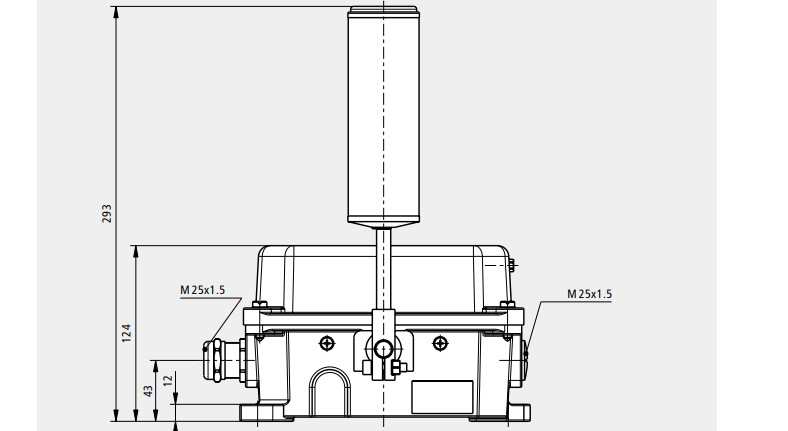

Bản vẽ hình ảnh Công tắc chống lệch băng tải Kiepe SEL 011

SEL 001 Kiepe Việt Nam

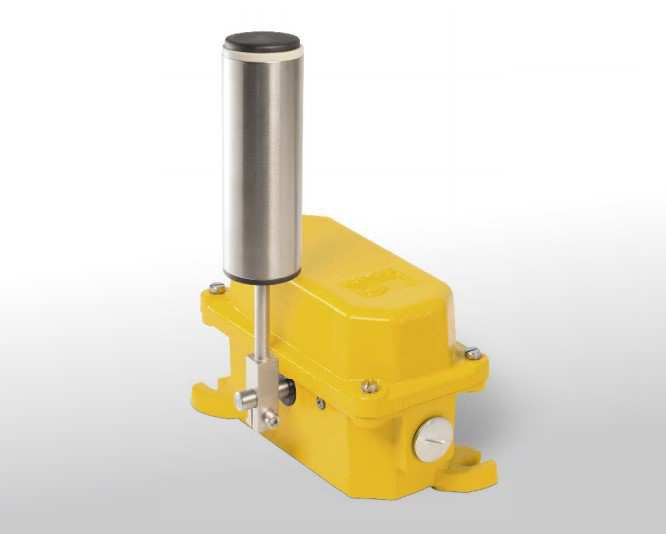

CÔNG TẮC BÁO LỆCH BĂNG KIEPE SEL 011
