Chi tiết sản phẩm
Pull Rope Emergency Switch LRS
Thông tin sản phẩm hãng: KIEPE
Ứng dụng sản phẩm:
Kiepe pull-rope emergency stop switches type LRS are used in accordance with the requirements of EN 620 as well as BGI 710 and in conformity with DIN EN ISO 13850 as emergency stop devices as supplementary safety measures on conveyor belt systems. The LRS aluminum housing offers space for one (1) switching element with different contact configurations for each variant of LRS. Taking into consideration the safety data and maintenance recommendations, the pull-rope emergency stop switch type LRS can be used in safety circuits in accordance with DIN EN ISO 13849 up to Performance Level e (PLe).

LRS 004 Công tắc giật dây Kiepe Việt Nam
Order number
|
|
NC |
NO |
|
|
LRS 004Kiepe Việt Nam |
2 |
1 |
93.046 690.004 |
|
LRS 022 Đại lý Kiepe Việt Nam |
2 |
2 |
93.046 690.022 |
|
LRS 031 Kiepe |
3 |
1 |
93.046 690.031 |
Belt Conveyor – Pull Rope Switch LRS 022Kiepe
|
Spare parts and accessories |
|
|
Cover complete with print “LRS 004“ |
215.24.01.01.05 |
|
Cover complete with print “LRS 022” |
215.24.01.01.06 |
|
Cover complete with print “LRS 031” |
215.24.01.01.07 |
|
Microswitch contact block |
on request |

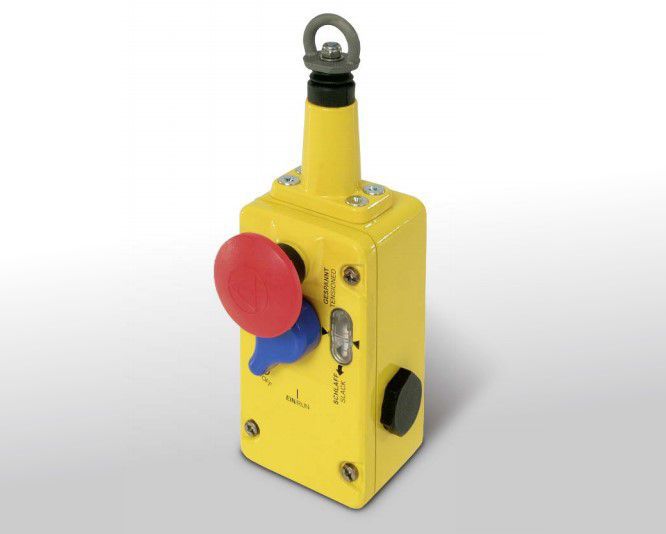

LRS 031Công tắc giật dây băng tải Kiepe
Đặc điểm

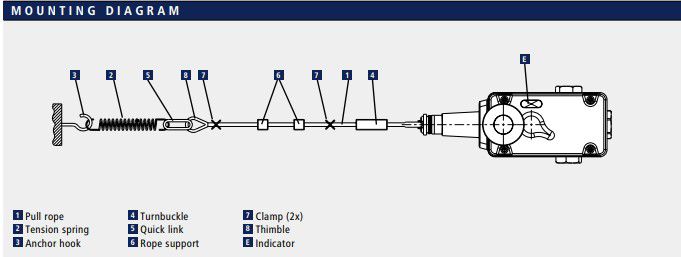

Pull-rope emergency stop switches of types LRS are each fastened to the substructure in installation position with 4 M5 screws.
The emergency stop signal is performed with positive-making normally closed (NC) contacts in accordance with the closed circuit principle.
After the emergency stop function is triggered, the switching mechanism is locked in the shut-off position “0”. The blue reset knob can only be moved to switching position “1”, when the actuating shaft is back in operating position
