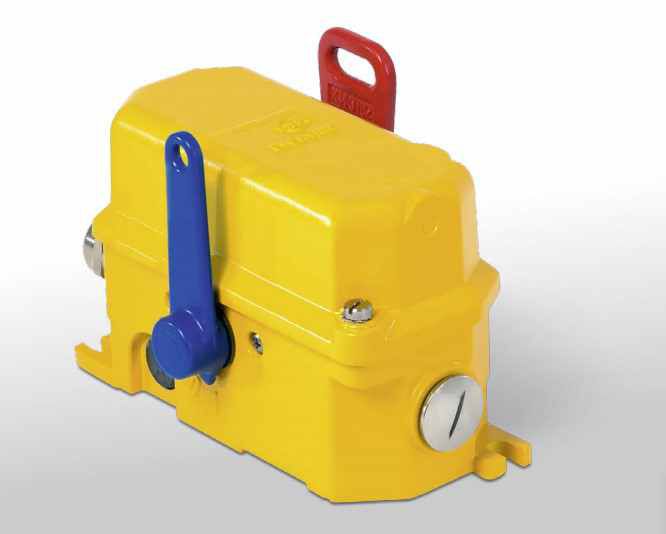

HEN 001 pull rope emergency Kiepe Việt Nam

Ứng dụng :

Kiepe pull-rope emergency stop switch types HEN comply with Machinery Directive 2006/42/EC.

They must only be used in control electrical circuits.

The HEN aluminum housing offers space for up to 3 simultaneously switching NO and NC contacts. Taking into consideration the safety data and maintenance recommendations, the pull-rope emergency stop switch type NTS can be used in safety circuits in accordance with DIN EN ISO 13849 up to Performance Level e (PLe).

Kiepe pull-rope emergency stop switches type HEN are used in accordance with the requirements of EN 620 as well as BGI 710 and in conformity with DIN EN ISO 13850 as emergency stop devices as supplementary safety measures on conveyor belt systems. The pull rope is symmetrically tensioned on both sides of the red release lever.

Công tắc giật dây băng tải Kiepe HEN 018

Đặc tính sản phẩm:

The emergency stop signal is performed with positive-making normally closed (NC) contacts in accordance with the closed circuit principle.

After the emergency stop function is triggered, the switching mechanism is locked in the shut-off position “0”. When the blue reset lever is actuated in switch position “1”, the switching con- tacts are reactivated and the conveyor belt is prepared for being turned back on again.

Resetting the pull-rope emergency stop switch must not cause the conveyor system to start up.

Chuyển đổi hãng Kiepe qua Sitec

Công tắc dừng khẩn cấp HEN 004 Kiepe Việt Nam

HEN 005KIEPE VIỆT NAM

CÔNG TẮC GIẬT DÂY KHẨN CẤP HEN 004 KIEPE

 Mouting:

Pull-rope emergency stop switches of types HEN are each fas- tened to the substructure in installation position with 2 M8 screws, centered between the anchor hook 3 of the pull-rope system (see the mounting diagram).​

Order number

Belt Conveyor – Pull Rope Switch HEN 005Kiepe Việt Nam

Kiepe Germany

Kiepe Việt Nam

HEN 001 KIEPE | HEN 018 KIEPE | HEN 005 KIEPE | HEN 004 KIEPE
