sensor ind,hochtemp230° M50x1,5/50lg
Anschl Verst,Sn20/3mTeflKbl,M12St,VA

Description

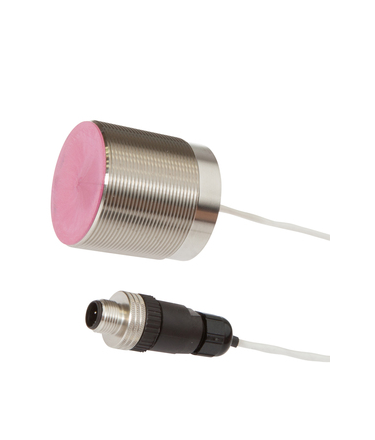

inductive sensors IB506050

Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects.

Thread length

41mm

Housing material

Stainless steel 1.4305

Thread pitch

1.5mm

Mechanical mounting condition for sensor

Flush

Material of cable sheath

PTFE

Pressure-proof

no

Cable length

3m

Thread size, metric

50

Housing design

Cylinder, screw-thread

Active area material of sensor

Vectra®

Degree of protection (IP)

IP65

Sensor length

51mm

Cascadable

no

Switching frequency

150Hz

Type of electrical connection

Connector M12

Type of switching function

Amplifier

Hysteresis

15%

Connection to amplifier

yes

Suitable for safety functions

no

Switching distance

20mm

Type of switching output

Other

With monitoring function of downstream devices

no

Norm measuring plate

50x50x1mm

Xem các sản phẩm khác của Hãng tại đây

IO-Link compatible

no
