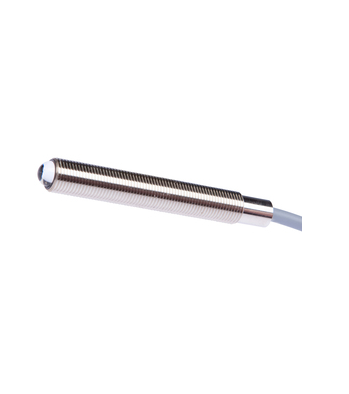

Cảm biến IPF Electronic OE080100

OPTICAL SENSORS OE080100

OE080100   Việt Nam

Sensor opt,empfänger M8x0,75/59lang
10-30V DC,100mA,Sn:2,5m/2m Kabel

Description

Optical sensors OE080100

Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.

Wire cross section

0.14mm²

Cable length

2m

Housing coating

Nickel-plated

Ambient temperature

-25 – 65°C

Thread pitch

0.75mm

Material of optical surface

Plastic PC

Degree of protection (IP)

IP65

Thread length

48mm

Housing material

Brass

Number of wires

3

Thread size, metric

8

Housing design

Cylinder, screw-thread

Material of cable sheath

PVC

Sensor length

59mm

Voltage type

DC

Type of input voltage

DC

Switching frequency

200Hz

Type of switching output

PNP

Operating voltage

10 – 30V

Measuring range

2.5m

Scanning function

Dark switching

Reverse polarity protection

yes

Voltage drop

2V

No-load current, receiver

24mA

With LED display (signal)

yes

Max. output current

100mA

With time function

no

Type of electrical connection

Cable

Type of switching function

Normally open contact (NO)

No-load current

24mA

Short-circuit-proof

yes

Rated switching distance

2500mm

Response time

2.5ms

Decay time

2.5ms

With LED display (functional reserve)

yes

Scope of delivery of the one-way system

Receiver

Light source

Infrared light

Light beam form

Point

Xem các sản phẩm khác của Hãng tại đây

Wavelength of the sensor

880nm
