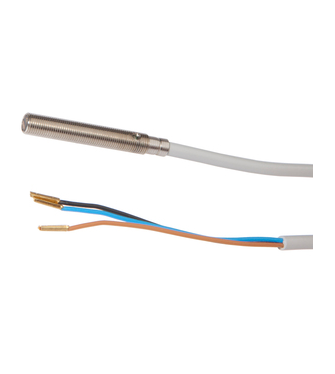

Cảm biến IPF Electronic OE050100

OPTICAL SENSORS OE050100

OE050100  Việt Nam

Sensor opt,empf M5x0,5/35lang,VA
10-30V DC,100mA,Sn:250/2m Kabel

Description

Optical sensors OE050100

Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.

Wire cross section

0.14mm²

Cable length

2m

Number of wires

3

Thread size, metric

5

Housing design

Cylinder, screw-thread

Material of cable sheath

PVC

Sensor length

35mm

Thread length

30mm

Housing material

Stainless steel V2A

Ambient temperature

0 – 55°C

Thread pitch

0.5mm

Material of optical surface

Glass

Degree of protection (IP)

IP67

Max. tightening torque

1.5Nm

Voltage type

DC

Type of input voltage

DC

Switching frequency

250Hz

Type of switching output

PNP

Operating voltage

10 – 30V

Measuring range

0.25m

Scanning function

Dark switching

Reverse polarity protection

yes

Residual ripple

20%

Readiness delay

20ms

No-load current, receiver

5mA

Max. output current

100mA

With time function

no

Type of electrical connection

Cable

Type of switching function

Normally open contact (NO)

No-load current

5mA

Short-circuit-proof

yes

Rated switching distance

250mm

Response time

2.5ms

Voltage drop

2V

Decay time

2.5ms

With LED display (signal)

yes

Scope of delivery of the one-way system

Receiver

Light source

Infrared light

Light beam form

Point
