Sensor laser,taster/linie,MASTER
15-30V DC,3xPP,a4-20mA,RS232,Sn:35-39

Description

Optical sensors PTSI0292

Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.

Housing material

Aluminium

Ambient temperature

-10 – 50°C

Material of optical surface

Glass

Sensor width

130mm

Sensor length

90.26mm

Housing coating

Anodised

Housing design

Cuboid

Degree of protection (IP)

IP54

Sensor height

25mm

Voltage type

DC

Number of pins

8

Switching frequency

200Hz

Type of analog output

4 mA … 20 mA

Type of switching output

PNP/NPN

Setting procedure

Parameterization

No-load current

100mA

Supply voltage

21.6 – 26.4V

Scanning function

Light-/dark-on mode

Absolute linearity deviation

0mm

Max. output current

100mA

Number of switching outputs

3

Scanning principle

Push button

Type of electrical connection

Connector M9

Type of switching function

Normally closed contact/normally open contact

Standard for interfaces

RS-232

Measuring method for optical distance measurement

Triangulation

Short-circuit-proof

yes

Measuring range length

35 – 39mm

Relative linearity deviation

0%

Geometrical resolution

0mm

Light source

Laser diode, red light

Light beam form

Line

Light spot range

0.6 – 0.6mm²

Laser protection class

Class 2

Resolution

0mm

Light spot, laser focus

0.6mm²

Xem các sản phẩm khác của Hãng tại đây

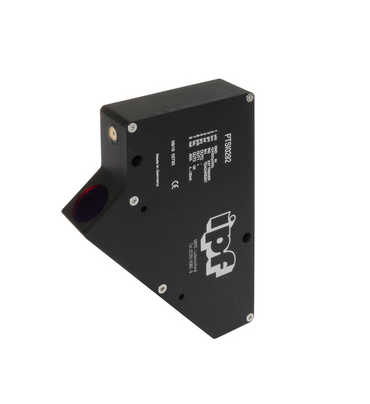

Cảm biến quang PTSI0292 – IPF Electronic Vietnam
