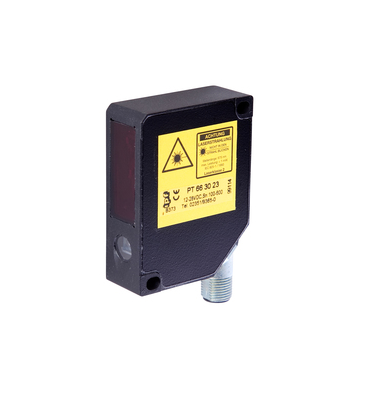

Cảm biến IPF Electronic PT663023

OPTICAL SENSORS

PT663023 Việt Nam

sensor laser,analog,teach 20,4x65x50
12-28V DC,Sn100-600,linie,M12Stckr8p

Description

optical sensors PT663023

Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.

Technical data

Housing material

Zinc die-cast

Housing design

Cuboid

Degree of protection (IP)

IP67

Sensor height

65mm

Ambient temperature

0 – 50°C

Material of optical surface

Glass

Sensor width

20.6mm

Sensor length

50mm

Voltage type

DC

Number of pins

8

Scanning principle

Push button

Type of electrical connection

Connector M12

No-load current

100mA

Supply voltage

12 – 28V

Measuring range length

100 – 600mm

Response time

0.9ms

Type of alarm output

PNP

Absolute linearity deviation

2mm

Max. output current

100mA

Alarm output

yes

Type of analog output

0 V … 10 V / 4 mA … 20 mA

Setting procedure

Teach-In

Measuring method for optical distance measurement

Triangulation

Short-circuit-proof

yes

Reverse polarity protection

yes

Decay time

0.9ms

Response/decay time

0.9ms

Relative linearity deviation

2%

Geometrical resolution

0.67mm

Light source

Laser diode, red light

Resolution

0.67mm

Small light beam diameter

yes

Light spot, laser focus

13.75mm²

Laser protection class

Class 2

Wavelength of the sensor

650nm

Light beam form

Line

Teach-in limits distance

10mm

Light spot range

13.75 – 52.5mm²
