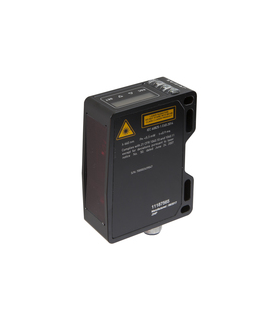

Cảm biến IPF Electronic PY740026

OPTICAL SENSORS PY740026

PY740026  Việt Nam

sensor laser zeile,analog,prog. 26x55x85
15-28V DC,Sn100-500,Höhe,M12Stckr8p

Description

Optical sensors PY740026

Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.

Housing material

Aluminium

Housing design

Cuboid

Degree of protection (IP)

IP67

Sensor height

85mm

Storage temperature

-25 – 75°C

Ambient temperature

-10 – 50°C

Material of optical surface

Glass

Sensor width

26mm

Sensor length

55mm

Voltage type

DC

Number of pins

8

Alarm output

yes

Type of analog output

0 V … 10 V / 4 mA … 20 mA

Operating voltage

15 – 28

No-load current

120mA

Supply voltage

15 – 28V

Measuring range length

100 – 500mm

Response time

1.3ms

Type of alarm output

PNP/NPN

Linearity deviation

0.1 – 0.1mm

Type of plug-in contact, communication interface

Male (plug)

IO-Link compatible

no

Max. output current

100mA

Number of switching outputs

1

Scanning principle

Push button

Type of electrical connection

Connector M12

Setting procedure

Parameterization

Measuring method for optical distance measurement

Triangulation

Short-circuit-proof

yes

Reverse polarity protection

yes

Decay time

1.3ms

Response/decay time

1.3ms

Type of plug-in contact, communication interface

Male (plug)

Absolute linearity deviation

0.1mm

Relative linearity deviation

0.1%

Geometrical resolution

0mm

Light source

Laser diode, red light

Resolution

0mm

Light section sensors

yes

Laser protection class

Class 2

Wavelength of the sensor

660nm

Xem các sản phẩm khác của Hãng tại đây

Light beam form

Line
