Sensor ind,hochtemp180° M18x1/70lang
IB1801T1,ATEX Zone 22

Description

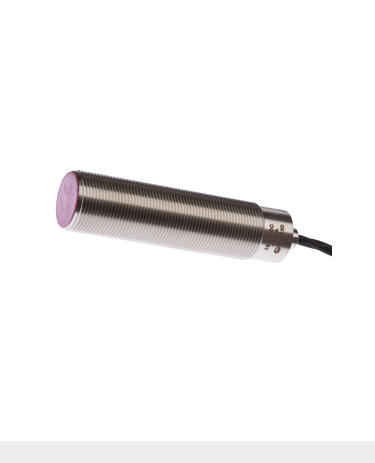

Inductive sensors IB18C339

Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects.

Wire cross section

0.22mm²

Cable length

5m

Number of wires

3

Thread size, metric

18

Housing design

Cylinder, screw-thread

Active area material of sensor

Vectra®

Degree of protection (IP)

IP50

Sensor length

70mm

Thread length

60mm

Housing material

Stainless steel 1.4305

Ambient temperature

-25 – 180°C

Thread pitch

1mm

Mechanical mounting condition for sensor

Flush

Material of cable sheath

PTFE

Pressure-proof

no

Voltage type

DC

Max. output current

150mA

Switching frequency

400Hz

Type of electrical connection

Cable

Type of switching function

Normally open contact

With monitoring function of downstream devices

no

Supply voltage

10 – 35V

Reverse polarity protection

yes

Hysteresis

15%

Voltage drop

2V

Readiness delay

5ms

Cascadable

no

Suitable for safety functions

no

Switching distance

5mm

Type of switching output

PNP

No-load current

15mA

Relative repeat accuracy

3%

Short-circuit-proof

yes

Response time

1.2ms

Residual ripple

10%

Norm measuring plate

18x18x1mm

IO-Link compatible

no
