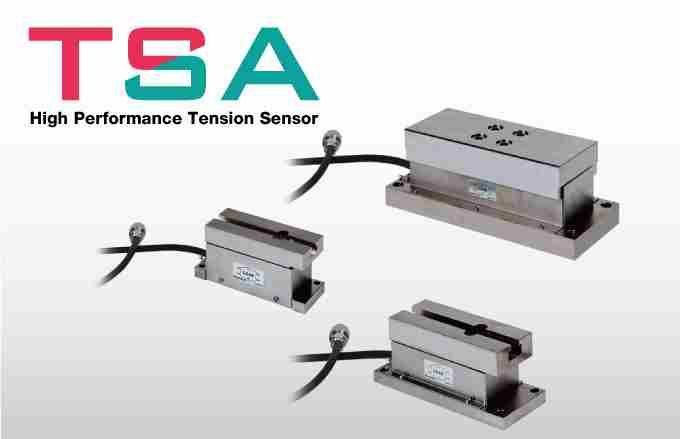

TSA200, TSA1000, TSA010K Nireco, cảm biến lực căng Nireco

TSA200, TSA1000, TSA010K, TSA200S, TSA1000S, TSA010KS cảm biến lực căng Nireco, đại lý Nireco Việt Nam, hãng Nireco tại Việt Nam, cảm biến Nireco

Chi tiết sản phẩm

TSA200S Nireco Việt Nam

TSA200, TSA1000, TSA010K, TSA200S, TSA1000S, TSA010KS Nireco

Specifications

Nireco Việt Nam

Standard Model

	Model	TSA200 (MB11)	TSA1000 (MB25)	TSA010K (MB33, MB41)
*1	Rated tension (N)	200	1000	10000
*1	Permissible roller load (N)	200	1000	7000
1 2	Permissible overload (10-times rated load) (N)	2000	10000	100000
	Roller displacement (μm/N)	0.3	0.05	0.005
	Spring constant (N/mm)	3333	20000	200000
*3	Resonant frequency (Hz)	91.0	99.6	108.1
	Output voltage under a single load-rated loading (mV)	±420±63mV/100N	±370±55mV/500N	±535±80mV/5000N
*4	Response time (msec)	0.5 or less
	Mass (kg)	1.4	3.6	16
	Tension direction	Forward and reverse direction		Forward only (reverse impossible)
	Mounting angle	Full 360°
	Power supply voltage	±15VDC （+15V/50mA，-15V/10mA）
	Operating temperature and humidity	0 to 50°C, 35 to 85% R.H., no condensation
	Operating principle	Strain gauge detection
	IP protection rating	IP30

Intrinsically Safe Construction Model

	Model	TSA200S (MB11S)	TSA1000S (MB25S)	TSA010KS (MB33S, MB41S)
*1	Rated tension (N)	200	1000	10000
*1	Permissible roller load (N)	200	1000	7000
1 2	Permissible overload (10-times rated load) (N)	2000	10000	100000
	Roller displacement (μm/N)	0.3	0.05	0.005
	Spring constant (N/mm)	3333	20000	200000
*3	Resonant frequency (Hz)	91.0	99.6	108.1
	Output voltage under a single load-rated loading (mV)	±350±52.5mV/100N	±315±47mV/500N	±460±68mV/5000N
*4	Response time (msec)	0.5 or less
	Mass (kg)	1.4	3.6	16
	Tension direction	Forward and reverse direction		Forward only (reverse impossible)
	Mounting angle	Full 360°
*5	Power supply voltage	±6VDC/20mA
	Operating temperature and humidity	0 to 50°C, 35 to 85% R.H., no condensation
	Operating principle	Strain gauge detection
*6	IP protection rating	IP30
