Cảm biến lực căng Nireco Việt Nam

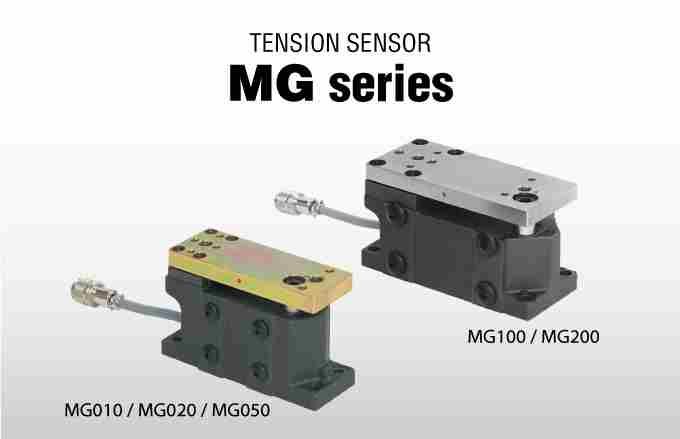

MG010, MG020, MG050, MG100, MG200 Nireco

Overview

The MG Tension Sensor was designed to be used with a tension controller or tension meter. It features compact and rigid construction, high accuracy, reduced temperature drift and high response.

Feature

With excellent temperature characteristics, the compact size saves space as well.
Additionally, non-contact detection using a differential transformer yields improved precision.

Specifications

Model	MG010	MG020	MG050	MG100	MG200
Rated tension (N)	100	200	500	1000	2000
Roll displacement (μm=N)	2.63	1.23	0.48	0.20	0.11
Allowable roll weight (kg)	10	20	50	100	200
Allowable overload (N)	Ten times rated load
Unit weight (kg)	1.5			2.6
Tension resultant direction	Forward or reverse possible
Mounting angle	Any desired angle
Supply voltage	DC＋6V
Ambient temperature	-10 to +60℃
Applicable bearings	UCP201 to 204 * UCP205 may also be employed when optional pillow-mounting			UCP201 to 204 pillow-employed when optional pillowmounting brackets (MD0178.0-12P) are used.
Note 1. Figures for rated tension and allowable roll weight are for double-sided detection. For single detection the above figures should be halved. 2. A 5m cable with connectors for connection to an amplifier is supplied.
