Thiết bị điều khiển vị trí Nireco Việt Nam
M121-AM, M721-AM, M550-AM Nireco
Feature
- Compact and highly reliable.
- Large operating force and high sensitivity and accuracy (control within±0.l mm according to installation conditions)
- A variety of sensors are available according to the application.
- The sensor, amplifier, controller, and actuator have high responses.
- Non-contact detecting system.
- Very easy installation and maintenance.
- All variety of sensors are available according to the application.
- The remote control head and/or the centering sensor further simplifies operation.(option)
System Components

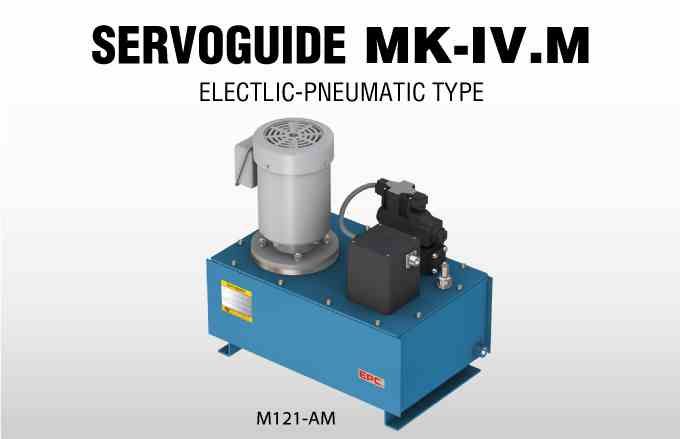

The Servoguide MK-IV. M is composed of a sensor, amplifier, controller, work cylinder, and a guide roll or reel stand. This system can be applied to a wide range of objects with the various sensors available.
Specifications
| MODEL | Type | Max operating pressure Mpa |
Pump capacity L/min |
Pump type | Motor Output W |
Max. operating force kN Cylinder bore mm |
Max. operating speed with no load mm/s Cylinder bore mm |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 80 | 50 | 80 | |||||||
| M121-AM | Single standard | 1.5 | 4.2 | Fix displacement | 400 | 2.9 | 7.4 | 34 | 13 | |
| M220-AM | Twin standard | 1.3 | 9（60Hz） | No load | Variable | 750 | 2.9 | 7.4 | 34 | 13 |
| 7.5（50Hz） | ||||||||||
| M721-AM | High load | 2.5 | 9（60Hz） | No load | Variable | 750 | － | 12.3 | － | 30 |
| 7.5（50Hz） | ||||||||||
| M550-AM | High pressure / high resolution type |
5 | 9（60Hz） | No load | Variable | 1500 | － | 24.6 | － | 60 |
| 7.5（50Hz） | ||||||||||
| M810-AM | High output type | 5 | 12.5（60Hz） | No load | Variable | 1500 | － | 24.6 | － | 60 |
| 10.5（50Hz） | ||||||||||
