TC920V Nireco Việt nam

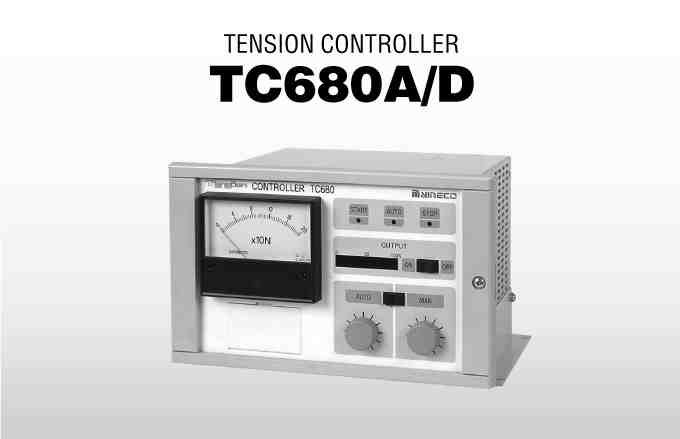

TC680A/D,

Overview

This analog tension controller was designed for easy-to-use, safe control and ease of operation. This intuitive controller, with its simple functionality, is easy for anyone to use.

Feature

Excellent Responsiveness via Constant Loop Gain Circuit
The control circuit uses Proportional + Integral calculation, providing fast response and high accuracy. Additionally indexed calculation is used to maintain a constant loop gain, regardless of changes in diameter. This maintains high responsiveness without hunting, maintaining appropriate loop gain at all times.
Easy to Use and Operate
The unit can be controlled automatically as long as you have an automatic machine contact. Consequently, the controller is easy for anyone to use, as long as a tension value is set. When stopped, a sequence allows the stopped output value corresponding to the diameter to be obtained.
Tension Display
It is possible to find the total tension, as well as the tension on just one side. Select an analog or digital display to suit your preferences.
Wide Range of Applications
Fits the final control elements of a large number of applications, including air brakes/clutches, air motors, electro-magnetic brakes/clutches, torque motors, and magnetic coupling motors. Select the installation method to suit the location, from panel-mounted, stand-alone, or mounted.
Connection with a wide range of tension sensors
Can be connected to the following wide range of Nireco sensors: MB, MG, MC, CD, MJ, CJ, TSA, and intrinsically safe TSA sensors
CE Compliant
CE marking compliant product

Nhà phân phối Nireco Việt Nam

Bộ hiển thị lực Nireco Việt Nam

Specifications

Power voltage		AC100 to 240V 50/60Hz
Power consumption		320VA (Rush current 60A (200V))
Over voltage category		Ⅱ Đại lý Nireco Việt nam
Current capacity		1.6A（200V）Nireco
Mass		5kg
Environment	Ambient temp.	0 to +50℃
	Ambient hum.	35 to 85% RH or less (no condensation)
	Vibration	3.5 mm, 1G, 3 to 150 Hz, 3 directions (1 hour)
	Power noise	2,000 Vp-p, normal mode, common mode 50 nS, 1 uS
	Atmosphere	No liquid water or flammable or corrosive gas, with low dust levels
	Air pollution degree	2
Rated tension		50, 100, 200, 500, 1000, 2000, 3000, 5000, 10000 N (The scale of the rated tension display is changed to show the various tensions.)
Connectable Tension Sensors		MB/MG tension sensor or MC/CD/MJ/CJ/TSA/Intrinsically safe TSA tension sensor
Output	Control Output	0 to 10V (max.5mA), 4 to 20mA 0 to 24V (max.4A)
	Display Output	0 to 10V (max.1mA), 0 to 1mA
	Recorder Output	0 to 10V (max.1mA)
	External Tension Setting Power	10V (max.5mA)
	Contact Output	No. outputs: 1 (30 V DC; 0.2A) Zero tension
Input	Sensor Input	Shared pins MB/MG/Intrinsically safe TSA tension sensor(connect to pins 1 to 4 & 17 to 20) MC/CD/MJ/CJ/TSA tension sensor(connect to pins 3 to 6 & 19 to 22)
	External Tension Setting Input	0 to 10V, input resistance 20 kΩ
	Contact Input	Auto contact (12 V DC; 10 mA)
