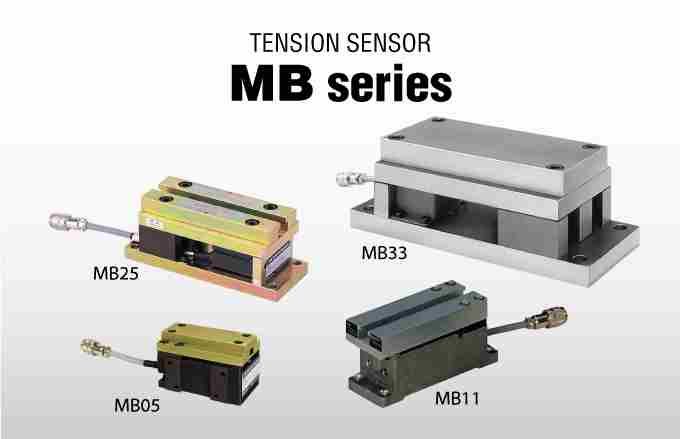

Bộ chỉnh biên Nireco Việt Nam

MB05B, MB05A, MB11B, MB11A, MB25B, MB25A, MB33B, MB33A, MB41 Nireco

Feature

Proven Track Record and Reliability
Without bearings or similar mechanical contacts, and employing a non-contact detection method using a differential transformer, the MB Tension Sensor is highly responsive with low hysteresis. The compact size also requires little space for installation.
Easy to Install
The MB 05, 11, and 25 can be installed at any angle.
Wide Selection of Sensors
①Full range available, from low tension (100 N full scale) to high tension (10,000 N full scale)
②All sensors have intrinsically safe construction.
Overload Resistant
The durable construction provides resistance to momentary overloads.

Specifications

Model	MB05B	MB05A	MB11B	MB11A	MB25B	MB25A	MB33B	MB33A	MB41
Rated tension (N)	(50)100	200	(50)100	200	500	1000	(2000) 3000	5000	10000
Roll displacement (μm/N)	2.38	1.19	2.63	1.30	0.44	0.22	0.071	0.045	0.023
Allowable roll weight (kg)	10	20	10	20	50	100	300	350	700
Allowable overload (N)	Ten times rated load
Unit weight (kg)	1.5		0.8		3.4		16.1		24
Tension resultant direction	Forward or reverse possible						Forward only (reverse impossible)
Mounting angle	Any desired angle
Supply voltage	DC +6V
Ambient temperature	-10 to +60℃
Applicable bearings	–
Note 1. Figures for rated tension and allowable roll weight are for double-sided detection. For single detection the above figures should be halved. 2. A 5m cable with connectors for connection to an amplifier is supplied. 3. MB05, MB11 and MB25 can be wall mounted with a bracket. If the unit is equipped with a bracket, “-W” is added to the end of its model name. e.g. MB11B-W. 4. Sensors with inherently intrinsic safety construction are also available. “S” is added to the end of the corresponding model name. e.g. MB11BS.
