Bộ khuếch đại AE61E, AE120 Nireco Việt Nam
AE61E, AE120 Nireco
Overview AE61E, AE120 Nireco

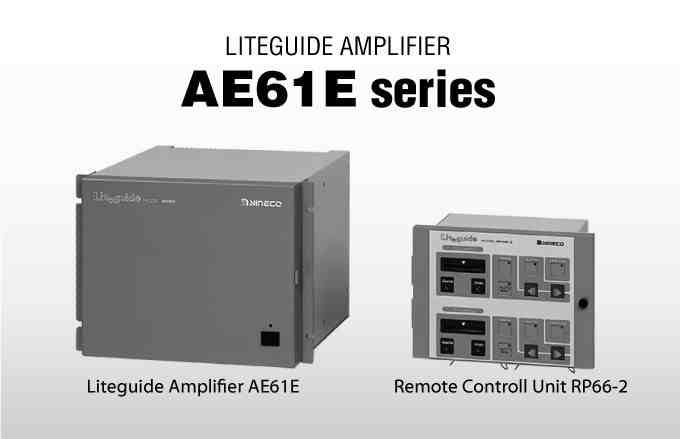

The Liteguide Amplifier AE61E performs high precision Center Position Control (CPC) and Edge Position Control (EPC) in combination with the Autowide Sensor (AWE280), Motor-driven Actuator (K12) and Remote Control Unit. The Remote Control Units are provided for single circuit and twin circuit types.
Feature AE61E, AE120 Nireco
- Switching between CPC (center position control) and EPC (edge position control) is possible.
- Auto-balance function is provided.
Example of instrumentation
Specifications
| Power supply | 100 to 240V AC (automatically switched) | |
|---|---|---|
| Power consumption | 100VA | |
| Ambient temperature | 0 to +50℃ | |
| Mass | 6.1kg | |
| Installation | Wall-mounted | |
| Input | Sensor | AWE280A |
| Centering sensor | SI12-NE4 | |
| Remote control unit | 1Single circuit : RP66-1 Twin circuits : RP66-2 Function : Auto / Man / Centering. Auto balance, Manual operation |
|
| Lock function | Contact input(+15V, 5mA) | |
| Centering function | Contact input(+15V, 5mA) | |
| Output | Motor | K12 : ± 24V DC, 1A(maximum) |
| Alarm contact | Guide roller end and sensor blur : 250V AC 0.1A, 30V, 0.1A | |
| Power supply for Sensor | DC15V 1.4A | |
