Hệ thống truyền động motor secbor Nireco Việt Nam
A352 Nireco
Overview

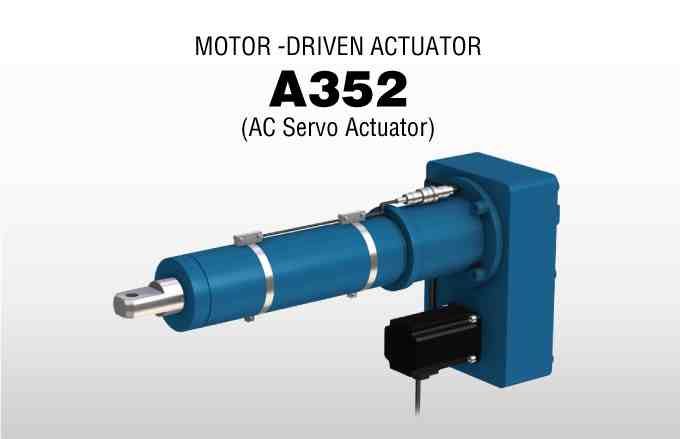

The A352-150-20 AC servo actuator is connected to a servo driver and a strip guide amplifier. This model is primarily used as an actuator (drive) for EPC systems. The totally enclosed structure of the actuator combines a highly efficient ball screw and an AC servo motor. The ball screw is driven by the forward or reverse rotation of the AC servo motor. The ball screw nut moves in the direction of the thrust, generating an external reciprocating motion.
Specifications
Model |
A352-150-20 |
|---|---|
Nominal speed |
Approx. 20 mm/s (at a motor speed of 2,000 rpm) |
Mechanical stroke |
150 mm * stroke between the reed switches |
Usable stroke |
140mm * stroke between the reed switche |
Thrust |
3.5 kN |
Motor specifications |
Output 0.2 kW
|
Lubrication |
Grease applied |
Piston rod rotational torque |
Approx. 6 N‧m |
Ambient operating temperature |
0 to 40℃ (standard)
|
Relative humidity |
No more than 80%RH |
Protective structure rating |
Indoor type (corresponding to IP50 protection) |
Mass |
23kg |
Paint color (standard color) |
7.5BG 4/1.5 |
Một số thiết bị khác của Motor-Driven Actuator
+ A352 Nireco,
+ A031 Nireco,
+ K80 Nireco,
+ K62-150-20 Nireco
+ K62-200-20 Nireco
+ K62-150-20/A Nireco
+ K62-200-20/A Nireco,
+ K12-80-07 Nireco
+ K12-80-20 Nireco
+ K12-150-07 Nireco
+ K12-150-20 Nireco
+ K12-00-70 Nireco
+ K12-00-450 Nireco
