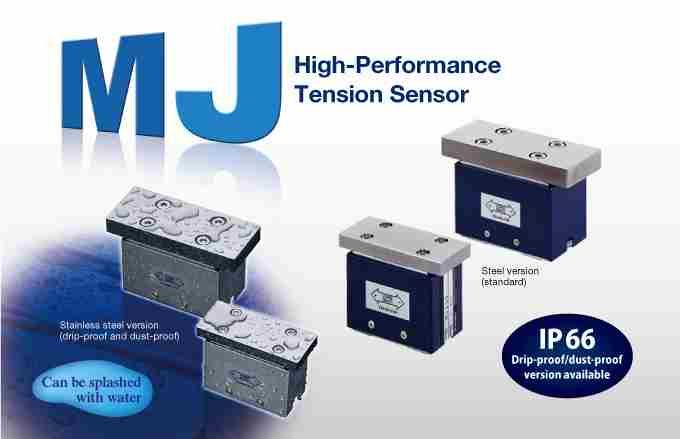

MJ500 Nireco Vietnam

PG1800 Nireco Việt Nam

Feature

The high spring-steel rigidity of the MJ tension sensor provides a high resonance point, making it ideal for high-speed lines.
The load displacement of the MJ tension sensor is extremely low, making it effective for thin web lines (i.e., film, foil, etc.).
The stainless version has an IP66-compliant protective housing that can handle being splashed with water when cleaning a production line.
The use of a mono-block structure provides outstanding linearity and hysterisis.
The MJ sensor is compact but highly robust.

Power Guide Nireco Việt Nam

servo valve PG1800 Nireco

Specifications

Model		MJ050	MJ200	MJ500	MJ1000
	Diagram number	MD0000320	MD0000330	MD0000340	MD0000350
*1	Rated tension (N)	50	200	500	1000
*1,4,5	Maximum roll load (N)	200	200	500	1000
*1,4	Maximum overload	700	2000	5000	10000
	Roll displacement (μm·N)	0.36	0.12	0.05	0.03
*2	Resonance frequency (Hz)	105.0	143.8	140.9	128.6
	Frequency response (Hz)	300
*3	Main unit mass (kg)	0.9		1.7
	Direction of resultant tension force	Forward or reverse
	Mounting angle	Any desired angle
	Supply voltage	±15VDC ±1V (+15V/50mA, -15V/10mA)
	Ambient temperature/humidity	0 to +50°C, 35 to 85%RH (No condensation permitted)
	IP Protection Rating	IP30
