Bộ khuếch đại Nireco Việt Nam

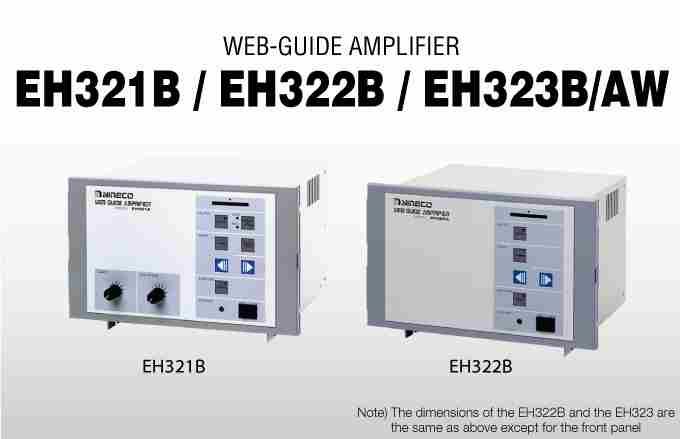

EH321B, EH322B, EH323B/AW Nireco
Overview
The Web Guide Amplifier amplifies signals from the sensors to operate the Servoguide controller, and also functions as a controller.
Changeover between automatic and manual operation can he done with the manual operation pushbutton switch. Truce models are available depending in the type of sensor.
Specifications
General
Control output |
-200 to 0 to +200mA DC (load 20 Ω , moving coil)(max. ± 250mA DC)
|
|---|---|
Power supply voltage |
100 to 240V AC, automatic changeover, 50/60 Hz |
Power consumption |
100VA |
Solenoid valve ＊ |
Power supply voltage |
Ambient temperature |
0 to +50℃ |
Installation |
Shelf, panel, or wall mounting |
Mass |
5kg |
*The power supply voltage of the solenoid valve is 200/220V AC, 50/60Hz. If other voltages are used, the valve must be customized, and the specificarions of the Servoguide MK-IV. M controller must be changed.
Specification by model
Model |
EH321B |
EH322B |
EH323B/AW |
|
|---|---|---|---|---|
Input |
sensor |
LH19
|
PH16B, PH21, PH30N, PH31N
|
AWL､AWR |
Centering sensor |
SI12-NE4 |
SI12-NE4 |
SI12-NE4 |
|
Remote control head |
LA100 |
RP100 |
RP100 |
|
Fine adjuster |
― |
2k Ω (Potensiometer) |
2k Ω (Potensiometer) |
|
Position transmitter |
― |
2k Ω (Potensiometer) |
2k Ω (Potensiometer) |
|
Output |
Lamp power supply |
DC6V 5W |
DC6V 5W､DC12V 10W |
― |
