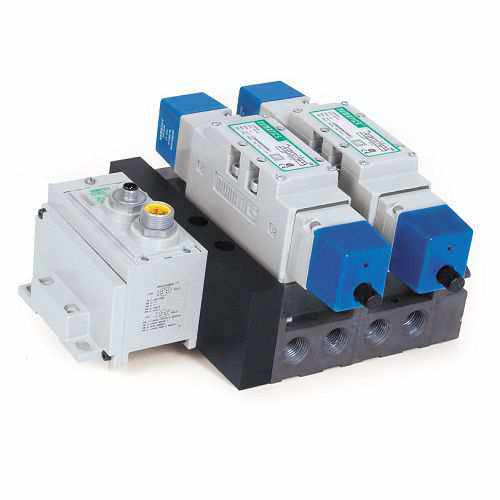

Van ISO cho hệ thống khí nén | ISO Valves for Pneumatic Systems | Pneumatic Valve – ISO Valve – 4 Way: 5/2, 5/3 – Numatics Series 5599/2 (Size 1)
Numatics ISO series valves are high speed, heavy duty valves, designed for general service on all types of automation. Valves comply with ISO standard 5599/2 for valve unit to base interchangeability. Direct solenoid and solenoid pilot actuated models available. They are true multi-purpose valves and employ the patented Numatics spool and sleeve assembly.

FEATURES
- Repeatable and reliable performance in harsh environments
- Meets ISO 5599/2 standard
- Industry leading life performance
- Ideal for high cycle rate machine applications
- Modular design for easy configuration
- Optimize energy consumption via pressure regulators
- Optimize machine cycle rate via speed controls
Standard Specifications:
-
Cv:
- 5599/2-1: 1.3
- 5599/2-2: 2.9
- 5599/2-3: 5.3
- 15407-2, 18mm: 0.56
- 15407-2, 26mm: 1.2
-
Port Sizes:
- 5599/2-1: 1/4 & 3/8 NPTF
- 5599/2-2: 3/8 & 1/2 NPTF
- 5599/2-3: 1/2 & 3/4 NPTF
- 15407-2, 18mm: 1/8 threaded, 1/4 push in, 6mm, 8mm
- 15407-2, 26mm: 1/4, 3/8, 8mm, 10mm
-
5 ported, 4-way, 2 and 3 position, spool & sleeve
-
Flow Capacity:
- 5599/2-1: 60.1 SCFM @ 80 PSIG / 1280 NI/m @ 6 bar
- 5599/2-2: 134 SCFM @ 80 PSIG / 2857 NI/m @ 6 bar
- 5599/2-3: 245 SCFM @ 80 PSIG / 5222 NI/m @ 6 bar
- Operating Pressure Range: 28″ Hg. Vacuum to 150 PSIG / Vacuum to 10 bar
- Pilot Pressure Range: 15 to 125 PSIG / 1 to 8.6 bar
- Temperature Range (Ambient): -10°F to +115°F / -23°C to +46°C
Specifications Numatics Series 5599/2:
| Pipe/Port Size: | Port Type: | Function: | Standard and Regulations: |
| 1/4 3/8 |
G ISO228/1-G BSPP NPTF |
4 way – 5/2 4 way – 5/3 4 way – 5/3 – Closed Center 4 way – 5/3 – Open Center 4 way – 5/3 – Pressure Center |
CSA IP65 ISO |
