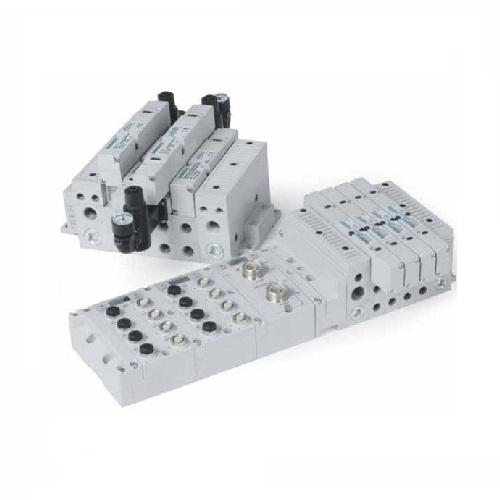

Van ISO 15407-2 | Numatics Series ISO 15407-2 (26mm)

Standard Specifications Numatics Series ISO 15407-2:

Cv:

• 5599/2-1:  1.3
• 5599/2-2:  2.9
• 5599/2-3:  5.3
• 15407-2, 18mm:  0.56
• 15407-2, 26mm:  1.2

Port Sizes:

• 5599/2-1:  1/4 & 3/8 NPTF
• 5599/2-2:  3/8 & 1/2 NPTF
• 5599/2-3:  1/2 & 3/4 NPTF
• 15407-2, 18mm:  1/8 threaded, 1/4 push in, 6mm, 8mm
• 15407-2, 26mm:  1/4, 3/8, 8mm, 10mm

5 ported, 4-way, 2 and 3 position, spool & sleeve

Flow Capacity:

• 5599/2-1:  60.1 SCFM @ 80 PSIG / 1280 NI/m @ 6 bar
• 5599/2-2:  134 SCFM @ 80 PSIG / 2857 NI/m @ 6 bar
• 5599/2-3:  245 SCFM @ 80 PSIG / 5222 NI/m @ 6 bar
• Operating Pressure Range: 28″ Hg. Vacuum to 150 PSIG / Vacuum to 10 bar
• Pilot Pressure Range: 15 to 125 PSIG / 1 to 8.6 bar
• Temperature Range (Ambient): -10°F to +115°F / -23°C to +46°C

Features:

• Fieldbus Electronics and I/O Capable
• Direct solenoid and solenoid air pilot actuated
• Conforms to ISO standards 5599/2 & 15407-2
• AC or DC
