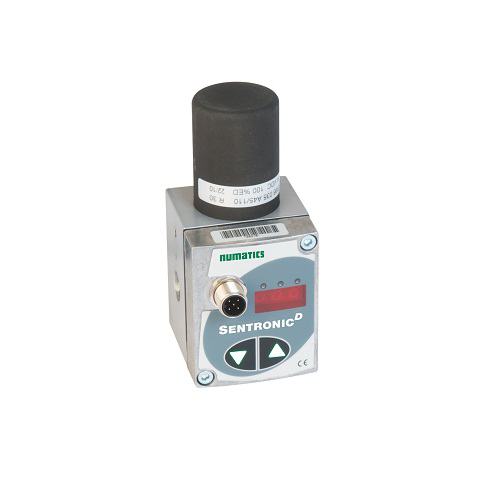

Proportional – 3 way – Sentronic D – ASCO Numatics Series 608/609

The Numatics SentronicD is a direct-operated 3-way proportional valve with digital control.  Valve control loop parameters can be optimized for the application using Data Acquisition Software (DaS) and a PC connection.

SentronicD Specifications Include:

• Fluids: Air or neutral gases
• Pressure Ranges: 0–50 psi, 0-100 psi, 0-150 psi, 0-3 bar, 0-6 bar, 0-10 bar
• Port Sizes: 1/8, 1/4, 3/8 (NPT or GTap)
• Flow Capacity: 16.6 to 45.9 SCFM (470 to 1300 l/min at 6 bar)
• Maximum Pressure: 90 to 190 psi (6 to 13 bar)
• Temperature Range (Fluid): 32°F – 140°F (0°C – 60°C)
• Temperature Range (Ambient): 32°F – 122°F (0°C – 50°C)

SentronicD Features Include:

• Digital communication and control
• Application customization with DaS (Data Acquisition Software)
• Easy change of control parameters
• Analog feedback output
• Direct-operated poppet valve
• Optional Display

Numatics DaS – Data Acquisition Software

Connect to a PC and use Numatics DaS to choose your own personalized settings to optimize control loop performance.  Use the scope function to view command signal, output pressure and other control parameters while SentronicD is running in the application.

ASCO Numatics DaS Setup Software

(Embedded file Readme.txt has download instructions)
