Van khí nén ASCO  – Pneumatic Valve ASCO

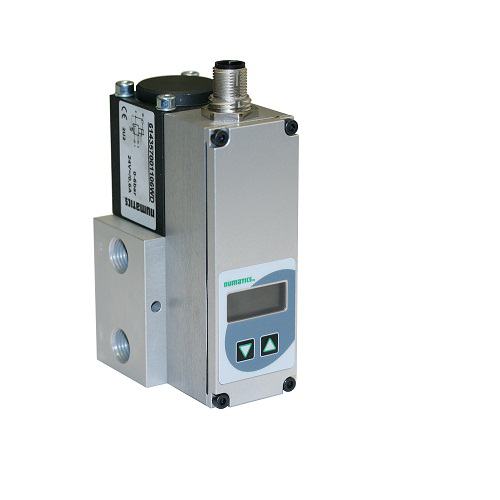

Proportional – 3 way – Sentronic Plus – ASCO Numatics Series 614

​The Numatics Sentronic^PLUS direct-operated 3-way proportional valve with digital control. Valve control loop parameters can be optimized for the application using Data Acquisition Software (DaS) and a PC connection. This valve is designed for applications with very dynamic pressure requirements.

Sentronic^PLUS Specifications Include:

• Fluids: Air or neutral gases
• Pressure Ranges: 0-1.5 psi to 0-725 psi, 0-0.1 bar to 0-50
• Port Sizes: 1/8, 1/4, 1/2, 1 (NPT or GTap)
• Flow Capacity: 7.4 to 197.8 SCFM (210 to 5600 l/min at 6 bar)
• Maximum Pressure: 29 to 870 psi (
• 2 to 60 bar)
• )
• Temperature Range (Ambient): 32°F – 140°F (0°C – 60°C)

Sentronic^PLUS Features Include:

• Digital communication and control
• Application customization with DaS (Data Acquisition Software)
• Easy change of control parameters
• Analog feedback output
• Direct-operated poppet valve
• Vacuum service
• Rated for potentially explosive atmospheres

Numatics Da S – Data Acquisition Software

Connect to a PC and use Numatics DaS to choose your own personalized settings to optimize control loop performance. Use the scope function to view command signal, output pressure and other control parameters while Sentronic^PLUS is running in the application.

ASCO Numatics DaS Setup Software

(Embedded file Readme.txt has download instructions)
