Balancing machines with vertical axis V50-100 UFA, V500 Cemb Việt Nam
Đặc điểm V50-100 UFA, V500 Cemb

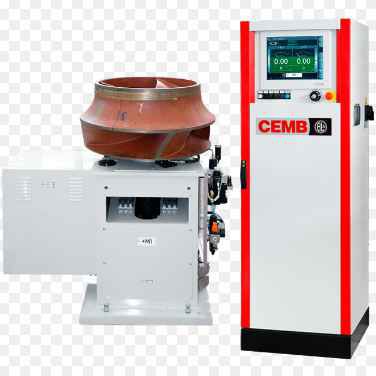

Balancing machine with automatic drilling unit
Vertical axis balancing machine equipped with a vertical axis drilling unit moving on two sliding guides and controlled axes.
Drilling unit characteristics:
– Max. drilling capacity in steel 20 mm
– Tool taper ISO40
– Spindle three-phase motor 3 Kw – 4 poles with inverter
The second picture shows the optional horizontal axis drilling unit (model V50-100 UFA-UO)
Technical data
Max rotor weight with tool |
Kg 50-100 |
Angular position accuracy |
± 1° |
Max diameter |
mm 550 |
Motor power |
Kw 3,8 ÷ 5,6 |
Balancing speed |
400 ÷ 600 |
V50-100 UFA, V500 Balancing machines with vertical axis Cemb
