Bộ truyền rung Cemb Việt Nam

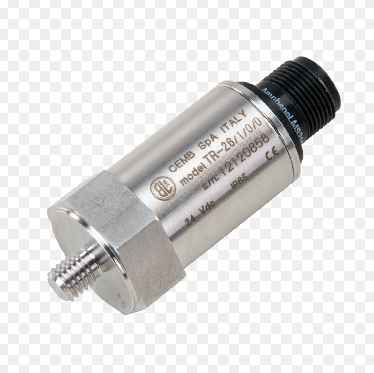

TR-26

Absolute vibration transmitter

The integrated transmitter TR-26 measures the absolute vibrations of any rotating machine support

The transmitter, secured directly on machinery, generates an electric signal (4÷20 mA) which is proportional respectively to vibration velocity or acceleration.

The transmitter is made of an AISI 316L body with machine connection thread; the connection to the acquisition system is effected by means of a MIL-C-5015-2 poles connector.

NOTE: The transmitter is available in different configuration versions and does not need any set-up or maintenance.

TR-26 monitors vibration of the point where fixed and interfaces directly to PLC/DCS 2 wires current loop. It is available with different certifications: intrinsecally safe Atex, TP TC, IECEx.

The transmitter is certificate SIL 2 for functional safety

Technical Data

Composition	AISI 304 stainless steel probe
	Die-cast aluminium converter
Power supply	24 Vdc (20 to 30 Vdc)
External connections	MIL C5015 5-pin connector (max conductors section 2,5 mm2)
Environmental application field	Probe -50°C to +175°C
	Converter -20°C to +70°C
Measuring field	Model 16 4 mm from 0,5 to 4,5 mm
	Model 20 8 mm from 0,5 to 8,5 mm
	Model 30 13 mm from 0,5 to 13,5 mm
Linearity	± 2%
Insulation	≥10⁸ Ω between signal and body/housing
Electrical connections	Three-polar shielded cable, typical conductors section 3×1 mm2
