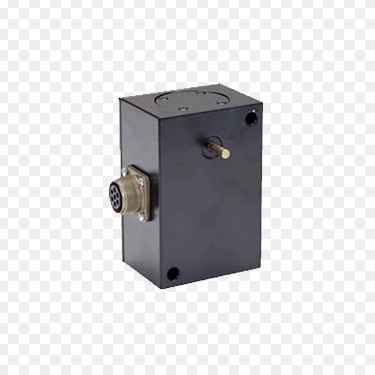

T7-LVDT

Angular measuring LVDT sensor

Transducer T7-LVDT is used for measuring the OPENING POSITION of steam VALVES in a turbine.

The measurement is performed by keying the transducer shaft integrally with the valve opening control device in order to measure the rotation of such device.

Principle of operation

Transformer T7-LVDT/120 allows transforming the rotational movement of the device,

into an electric signal that can be process by a CEMB instrument “T series”

Technical Data

Range of measurement	0 to 120°
Sensitivity	5 mV/°
Transformer LVDT	Range = ±5.08 mm
	Impedance, primary winding = 970 ohm/2500 Hz
	Impedance, secondary windings = 1010 ohm/2500 Hz
	Max linearity error = ± 0.5% f.s.
	Nominal sensitivity = 63 mV/mm
	Frequency range = 50 Hz to 10 kHz
	Supply voltage = 3 V rms (rated)
Range of application	Temperature = -55°C to +95°C
	Humidity = max 95% not condensing
	Vibrations = max 20 g / 2 KHz
	Ambient = IP55 EN60529/10.90 standards
Power supply	± 15 Vdc, GND
Connection	connector 7-pin MIL C-5015 series 3106/16, standard kit
Outer casing material	Aluminium
Weight	Kg 3 approx.
Maintenance	none
