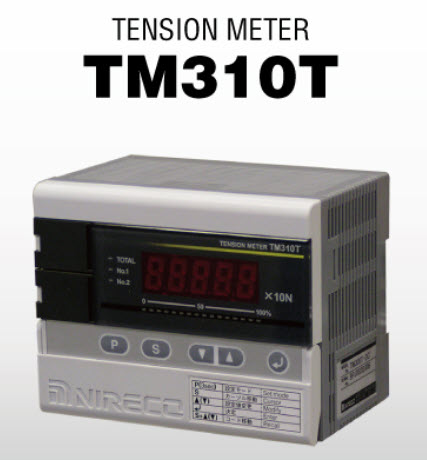

Tension Meter TM310T Nireco | Bộ hiển thị lực căng TM310T Nireco
Overview
Easy tension settings that can be used immediately
Operation status can be known in real timedue to additional communication function
Tension meter TM310T is a compatible with Nireco’s entire line-up of tension sensors (MB, MG, MC, CD, MJ, CJ, TSA, Intrinsically safe TSA) and displays their tension readings.
The display range is from 0 to 10 kN (1,000 x 10 N). The tension signal output (0 to 10 V (0 to 5 V), or 4 to 20 mA) can be output to a sequencer, indicator, recorder or other device.
The Tension Meter TM310T quantitatively measures the tension of a running web in manufacturing and processing lines of webs such as film, textile and rubber.
Nireco tension sensors that have good accuracy and responsiveness are used. These sensors electronically measure the tiny changes that vary in proportion to the web tension. The TM310T tension meter then adds and amplifies the sensor signals and indicates the tension.
Specification
| Power source voltage | TM310T‐DC : DC24V TM310T‐AC : AC100 : 240V 50/60Hz |
|---|---|
| Power consumption | 25VA |
| Ambient temperature operating range | 0 to ＋50℃ |
| Ambient humidity | 80% or less (no condensation) |
| Sensor power supply | +6V、±15V |
| Input | 2 inputs: Any Nireco sensor from the MB, MG, MC, CD, T0, MJ , CJ , TSA series |
| Output | Voltage output: 4 outputs: for control, for recording (No. 1, No. 2, Total) Current outputs: 2 outputs.. for control (4 to 20 mA) and for an indicator (1 mA) |
| Warning output | 2 tension upper limits or left and right tension comparisons, lower limit warning outputs |
| Telecommunications function | RS485 (2 line half duplex, 9600 bps independent protocol) |
| Installation | Attached to the DIN rail |
| External dimensions | (W)110×(H)90×(D)70.5 |
| Mass | 1.2kg |
| Nhà cung cấp | Đại lý Nireco tại Việt Nam |
|---|---|
| Xuất xứ | Nhật Bản – Japan |
