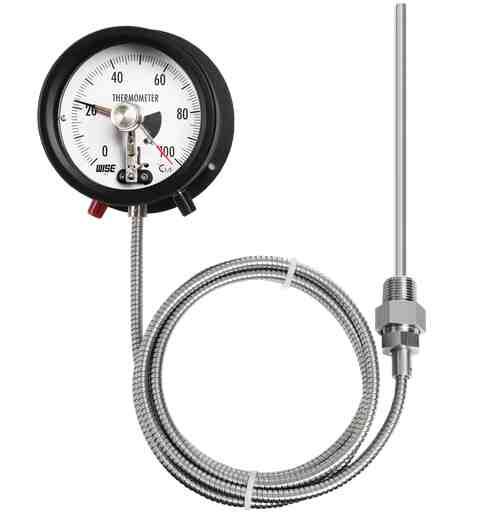

T711(H), T712(H/L), T713(L), T714(H/HH) Wise Control- Đồng hồ đo nhiệt độ Wise

Đồng hồ đo nhiệt độ T711(H), T712(H/L), T713(L), T714(H/HH) Wise Control Việt Nam, đại lý Wise Control Việt Nam, hãng wise control tại Việt Nam

Chi tiết sản phẩm

Đồng hồ đo nhiệt độ Wise Control Việt Nam

Nominal diameter	100 and 150 mm
Accuracy	±2.0 % of full scale
Measuring system (SAMA class ⅢB)	Organic gas : 0 ~ 200 °C Inert gas : -200 ~ 700 °C
Working range	Maximum scale value

Standard features

Location of stem and mounting	Bottom connection, surface, case mounting Lower back connection, flush, case lower mounting Lower back connection, flush, case centre mounting
Case	Black finished aluminium
Cover	Black finished aluminium
Capillary	Capillary : 1.6/0.2 mm, 316SS Armored tube : 7.5/5.5 mm, 304SS
Window	Acrylic
Dial	White aluminium with black graduations
Contacts	Maximum voltage : 250 V AC Contact rating : AC 220 V, 0.25 A DC 100 V, 0.5 A With max. no of contact : 2 sets per gauge
Pointer	Black finished brass
Stem	6.4, 8.0, 10.0 and 12.0 mm 316SS and 316L SS
Stem, process connection	⅜”, ½”, ¾” PT, NPT and PF
Option	±1.0 % of full scale
