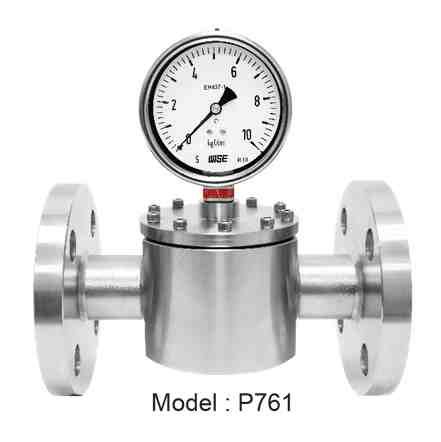

P761, P762, P763 Wise- đồng hồ đo áp suất Wise Control Việt Nam

Đồng hồ đo áp suất P761, P762, P763 Wise Control Việt Nam, đại lý Wise Việt nam, hãng Wise tại Việt Nam

Chi tiết sản phẩm

Đồng hồ đo áp suất Wise Control Việt Nam

Design	Internal diaphragm
Accuracy	Refer to gauge model
Suitable pressure range (MPa, kPa, bar)	-0.1 ~ 0 to -0.1 ~ 2.5 MPa 0 ~ 0.1 to 0 ~ 35 MPa
Filling liquid	Silicone oil
Working temperature	Temperature rating of the diaphragm seals depends on the fill fluid, the diaphragm material and the lower housing material. Standard fill fluids are available for temperature range -20 ~ 200 ˚C
Diaphragm material	Diaphragms are available in many corrosion resistant materials. Compatibility of selected material and process fluid is the responsibility of user
Temperature effect	Accuracy at temperature above and below the reference temperature (20 ˚C) will be effected by approximately ±0.5 % per 10 ˚C of full scale

Standard features

Upper flange (Gauge side)	Stainless steel (304SS, 316SS)
Diaphragm	316L SS, Monel, Hastelloy-C Titanium, Tantalum, Nickel, Alloy20
Under flange and process flange	Stainless steel (304SS, 304L SS, 316SS, 316L SS) Monel, Hastelloy-C, Titanium, Nickel
Option	Diaphragm and under flange are available in PTFE coating Under flange (Process side) are available in purging plug or heating/cooling jacket
Dial	White aluminium with black graduations
Pointer	Black painted aluminium alloy
