Power Supply Units Beckhoff

Model: C9900-P209

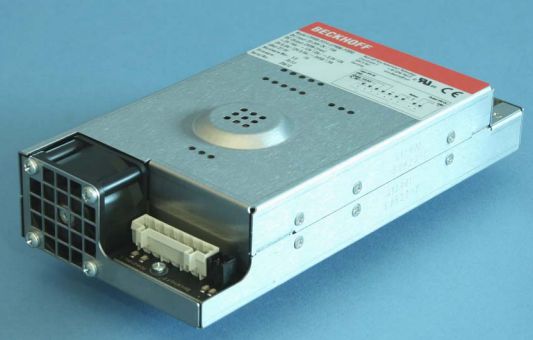

Bộ nguồn C9900-P209 Beckhoff

The C9900-P208 and C9900-P209 power supply unit provide the power supply for Beckhoff Industrial PCs. The C9900-P209 power supply in conjunction with a C9900-U330 battery pack allows the construction of an uninterruptible power supply (UPS).

In order to maintain a screen display for the Industrial PC in the event of a power failure, the C9900-P209 power supply unit is equipped with a UPS output 27 V / 1.4 A for connecting a Control Panel with a display dimension up to 19 inches. This enables a power failure to be visualized and displayed to the user. Once the PC has shut down, the UPS output is switched of

Electrical data

Input voltage: 22-30V DC/ 15A

Power output: 250W (max.)

Output voltages:

• + 5V 14A
• + 12V 12A
• + 3.3V 12A
• – 5V 0.3A
• – 12V 0.5A
• + 5VSB 1.5A
