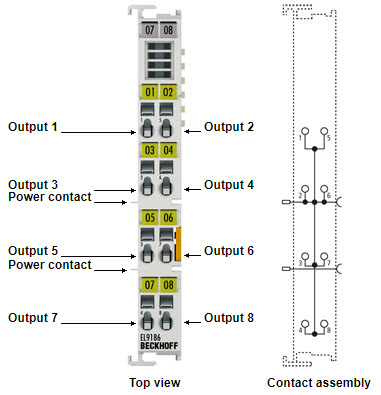

Thiết bị đầu cuối EtherCAT EL9186 Beckhoff

EtherCAT System Terminals EL 9186 Beckhoff

The potential distribution terminal EL9187 provides eight terminal points with a potential and enable the voltage to be picked up without further bus terminal blocks or wiring

Technical data	EL9186 \| ES9186
Technology	potential distribution terminal
Number of outputs	e.g.: 8 x 24 V contact
Current load	≤ 10 A
Power LED	–
Defect LED	–
Renewed infeed	–
Current consumption E-bus	–
Nominal voltage	≤ 60 V
Integrated fine-wire fuse	–
Electrical isolation	500 V (E-bus/field potential)
Diagnostics in the process image	–
Reported to E-bus	–
PE contact	–
Shield connection	–
Connection facility to additional power contact	8
Bit width in the process image	0
Electrical connection to DIN rail	–
Housing width in mm	12
Side by side mounting on EtherCAT Terminals with power contact	yes, left without PE
Side by side mounting on EtherCAT Terminals without power contact	–
Weight	approx. 50 g
Operating/storage temperature	-25…+60 °C/-40…+85 °C
Pluggable wiring	for all ESxxxx terminals
Approvals	CE, UL, Ex
