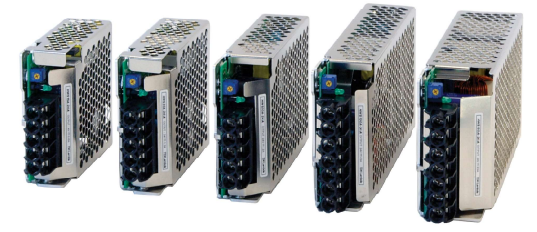

Power Supply HWS100A-24/A TDK-Lambda – Bộ nguồn TDK-Lambda
Đại lý TDK-Lambda tại Việt Nam
Bộ nguồn TDK-lambda
Model: HWS100A-24/A
50-150W Single Output Industrial Power Supplies
Features
- Limited Lifetime Warranty
- UL508 approved
- SEMI F47 Compliant (high line AC)
- Universal Input (85 – 265VAC)
- Higher Effi ciency Than HWS series
Output Ratings
| Model | Voltage V |
Adjust Range V | Max Current A | Load Reg (mV) | Line Reg (mV) | Ripple Noise (mV) | Overvoltage V |
Efficiency (typ) % (1) |
| HWS15A-3/A | 3.3V | 2.97 – 3.96 | 3 | 40 | 20 | 120 | 4.13-4.95 | 70/71 |
| HWS30A-3/A | 3.3V | 2.97 – 3.96 | 6 | 40 | 20 | 120 | 4.13-4.95 | 75/77 |
| HWS50A-3/A | 3.3V | 2.97 – 3.96 | 10 | 40 | 20 | 120 | 4.13-4.95 | 76/78 |
| HWS100A-3/A | 3.3V | 2.97 – 3.96 | 20 | 40 | 20 | 120 | 4.13-4.95 | 82/84 |
| HWS150A-3/A | 3.3V | 2.97 – 3.96 | 30 | 40 | 20 | 120 | 4.13-4.95 | 82/84 |
| HWS15A-5/A | 5V | 4.0 – 6.0 | 3 | 40 | 20 | 120 | 6.25-7.25 | 77/79 |
| HWS30A-5/A | 5V | 4.0 – 6.0 | 6 | 40 | 20 | 120 | 6.25-7.25 | 80/82 |
| HWS50A-5/A | 5V | 4.0 – 6.0 | 10 | 40 | 20 | 120 | 6.25-7.25 | 82/84 |
| HWS100A-5/A | 5V | 4.0 – 6.0 | 20 | 40 | 20 | 120 | 6.25-7.25 | 84/86 |
| HWS150A-5/A | 5V | 4.0 – 6.0 | 30 | 40 | 20 | 120 | 6.25-7.25 | 85/87 |
| HWS15A-12/A | 12V | 9.6 – 14.4 | 1.3 | 96 | 48 | 150 | 15-17.4 | 80/83 |
| HWS30A-12/A | 12V | 9.6 – 14.4 | 2.5 | 96 | 48 | 150 | 15-17.4 | 84/86 |
| HWS50A-12/A | 12V | 9.6 – 14.4 | 4.3 | 96 | 48 | 150 | 15-17.4 | 83/85 |
| HWS100A-12/A | 12V | 9.6 – 14.4 | 8.5 | 96 | 48 | 150 | 15-17.4 | 86/88 |
| HWS150A-12/A | 12V | 9.6 – 14.4 | 13 | 96 | 48 | 150 | 15-17.4 | 85/88 |
| HWS15A-15/A | 15V | 12.0 – 18.0 | 1 | 120 | 60 | 150 | 18.8-21.8 | 81/84 |
| HWS30A-15/A | 15V | 12.0 – 18.0 | 2 | 120 | 60 | 150 | 18.8-21.8 | 85/87 |
| HWS50A-15/A | 15V | 12.0 – 18.0 | 3.5 | 120 | 60 | 150 | 18.8-21.8 | 83/86 |
| HWS100A-15/A | 15V | 12.0 – 18.0 | 7 | 120 | 60 | 150 | 18.8-21.8 | 86/88 |
| HWS150A-15/A | 15V | 12.0 – 18.0 | 10 | 120 | 60 | 150 | 18.8-21.8 | 86/89 |
| HWS15A-24/A | 24V | 19.2 – 28.8 | 0.65 | 150 | 96 | 150 | 30-34.8 | 82/85 |
| HWS30A-24/A | 24V | 19.2 – 28.8 | 1.3 | 150 | 96 | 150 | 30-34.8 | 86/88 |
| HWS50A-24/A | 24V | 19.2 – 28.8 | 2.2 | 150 | 96 | 150 | 30-34.8 | 84/87 |
| HWS100A-24/A | 24V | 19.2 – 28.8 | 4.5 | 150 | 96 | 150 | 30-34.8 | 87/89 |
| HWS150A-24/A | 24V | 19.2 – 28.8 | 6.5 | 150 | 96 | 150 | 30-34.8 | 88/90 |
| HWS15A-48/A | 48V | 38.4 – 52.8 | 0.33 | 240 | 192 | 200 | 55.2-64.8 | 80/80 |
| HWS30A-48/A | 48V | 38.4 – 52.8 | 0.65 | 240 | 192 | 200 | 55.2-64.8 | 82/83 |
| HWS50A-48/A | 48V | 38.4 – 52.8 | 1.1 | 240 | 192 | 200 | 55.2-64.8 | 84/86 |
| HWS100A-48/A | 48V | 38.4 – 52.8 | 2.1 | 240 | 192 | 200 | 55.2-64.8 | 88/90 |
| HWS150A-48/A | 48V | 38.4 – 52.8 | 3.3 | 240 | 192 | 200 | 55.2-64.8 | 89/91 |
| Nhà cung cấp | Đại lý phân phối TDK tại Việt Nam |
|---|---|
| Xuất xứ | Nhật Bản – Japan |
