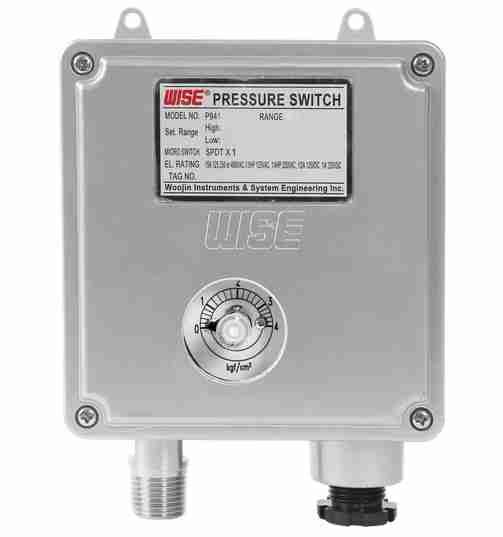

Nominal diameter

Refer to dimension drawing

Repeatability

±1.0 % of adjustable range

Adjustable setting range (MPa, kPa, bar)

-0.1 ~ 0 to -0.1 ~ 2.5 MPa
0 ~ 0.1 to 0 ~ 35 MPa

Dead band

Fixed
One SPDT : Approx. 5 % adjustable range
Two SPDT : Approx. 10 % of adjustable range

Working temperature

Ambient : -20 ~ 65 °C
Fluid : Max. 100 °C

Pressure connection

Stainless steel (316SS)

Element

Stainless steel (316SS)

Case and cover

ALDC 12.1
Silver gray painted

Contact

Micro contact type
One SPDT or two SPDT

Contact rating

SPDT contact rating
AC 125 V / 250 V, 15 A
DC 125 V, 0.4 A for resistance load
DC 125V, 0.03 A for resistance load

Conduit connection

½” PF (Single setpoint) P941
¾” PF (Dual setpoint) P942

Process connection

⅜”, ½” PT, NPT and PF
